Name: SIGMA COMPACT 5A (2016) – 5-axis machining center - Sedlacek Trade s.r.o.
Brand: SIGMA
SKU: SIGMA-COMPACT5A-2016
Price: 57500 EUR
Availability: InStock

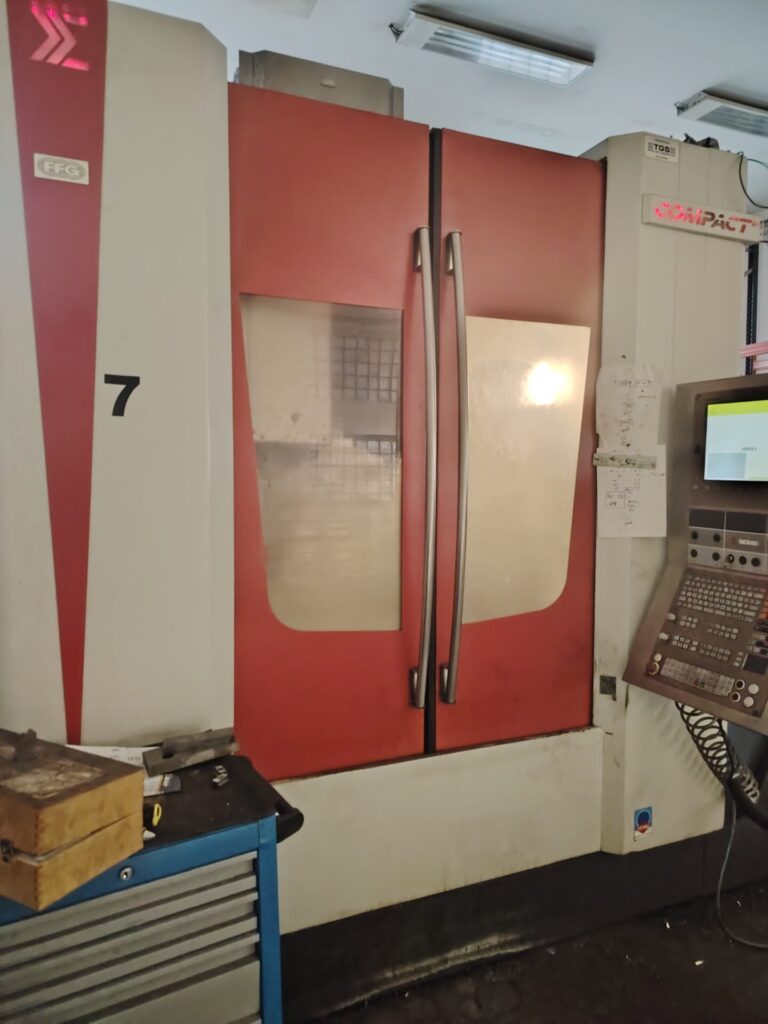

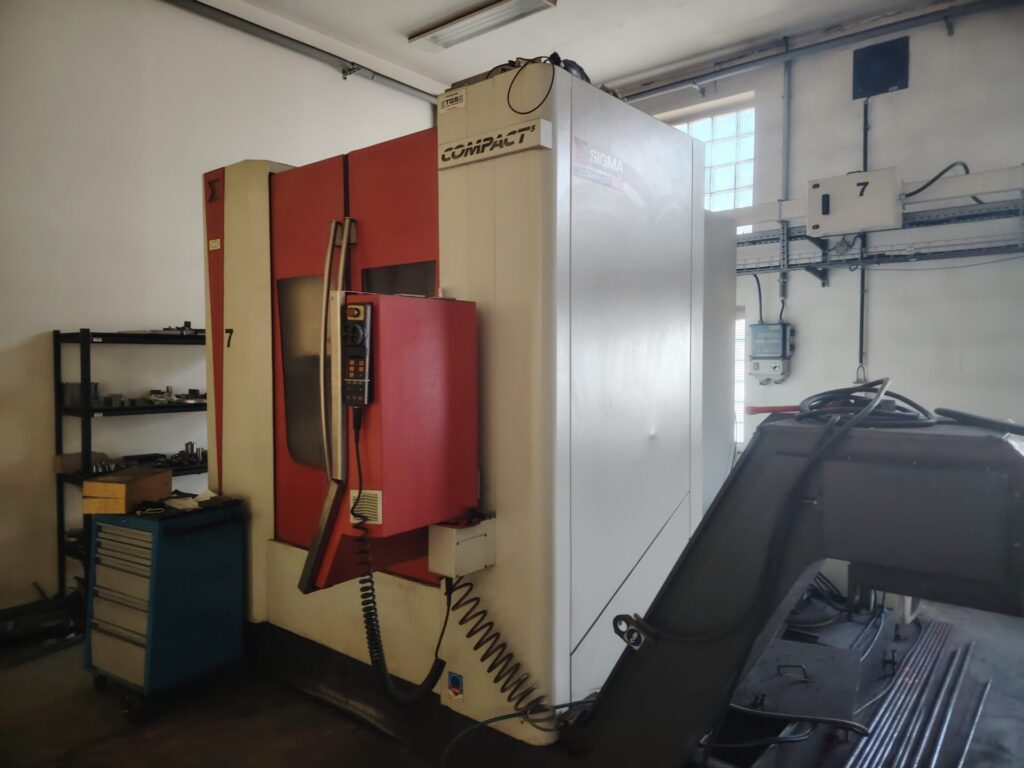

We are offering for sale a precise and high-performance SIGMA COMPACT 5A five-axis machining center, manufactured in 2016.
Our company is the exclusive distributor of this machine.

This model is ideal for demanding operations that require stability, speed, precision, and state-of-the-art technology. Its robust construction, high-quality spindle, dynamic axes, and full five-axis kinematics make it a versatile solution for a wide range of machining applications.

🔧 Machine Specifications

Workspace

X-axis travel: 1150 mm
Y-axis travel: 570 mm
Travel along the Z-axis: 800 mm
Distance from spindle end (vertical position) to table: 625 mm
Distance between the horizontal axis of the spindle and the table: 160–960 mm

Tilting Head – B-axis

Angle of rotation: ±110°
Max. torque: 1360 Nm (720 Nm continuous)

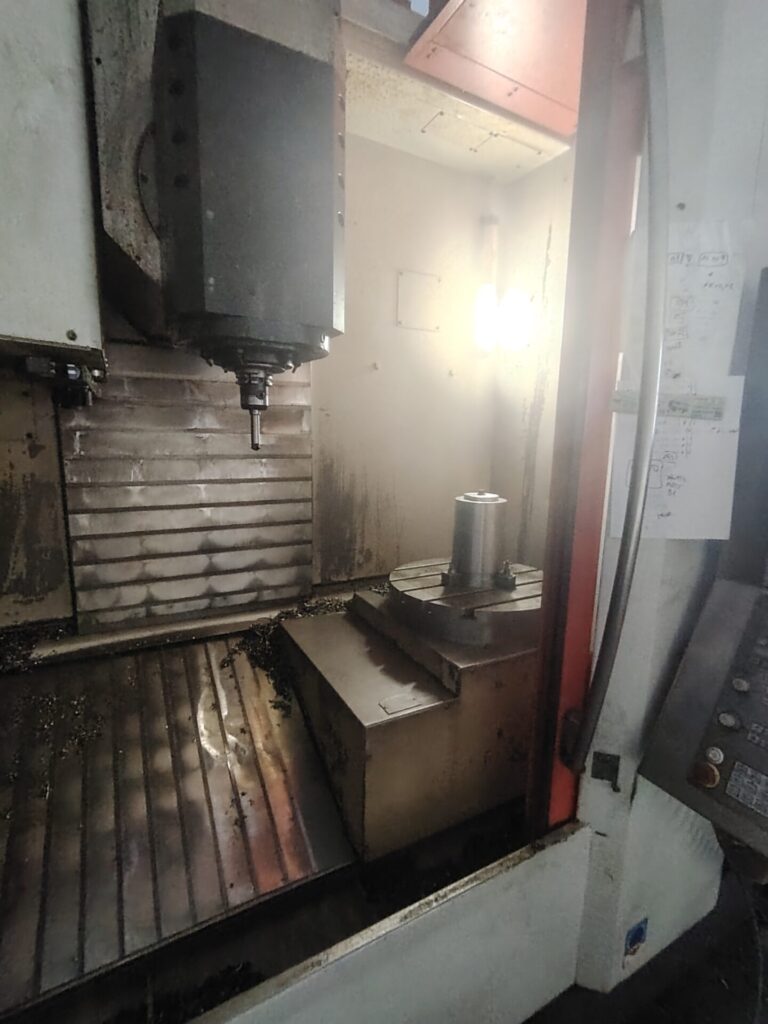

Rotary Table – C-axis

Table diameter: 550 mm
Max. load: 500 kg
Max. torque: 1630 Nm (870 Nm continuous)

Spindle

Speed: 40–12,000 min⁻¹
Taper: No. 40 DIN 69871-A
Power (S1/S6): 22 / 33 kW
Constant power from 1,750 rpm
Max. torque: 180 Nm
Ceramic Bearings
Electronic indexing: 3,600 entries
Spindle Temperature Control

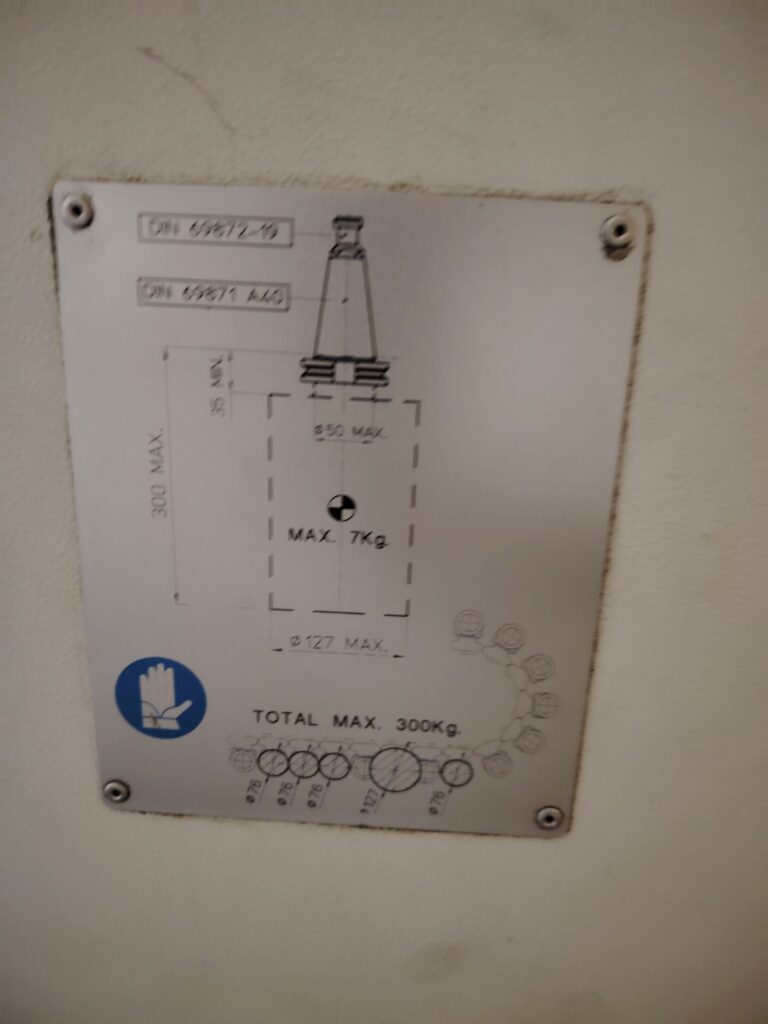

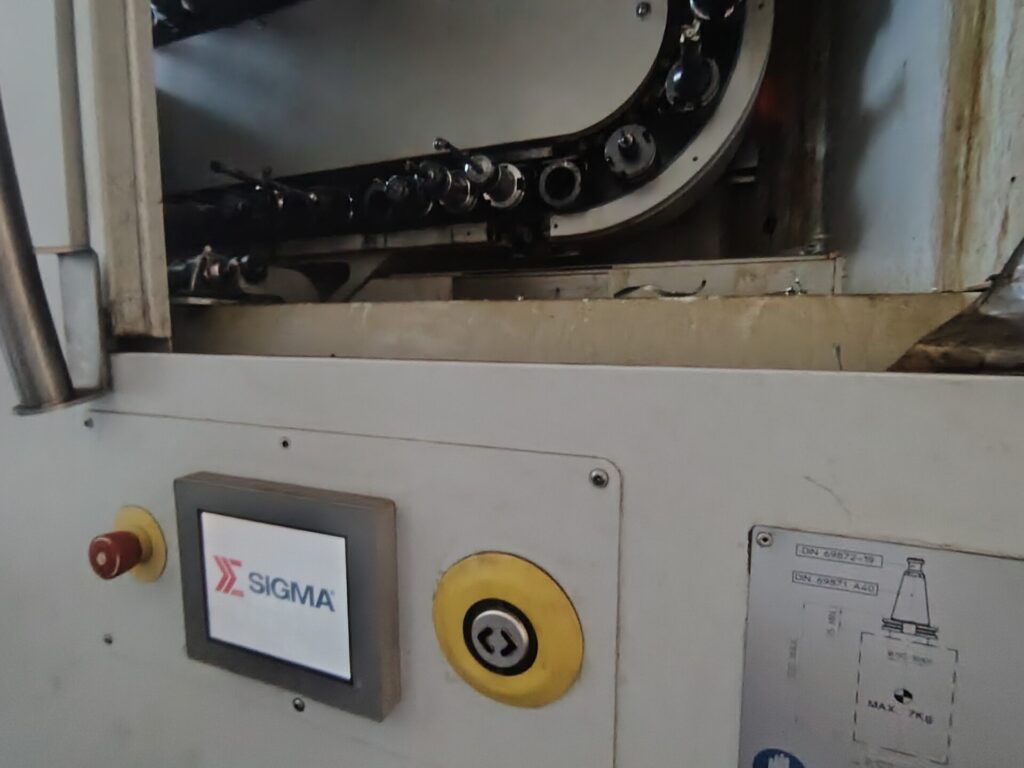

Tool Tray

Capacity: 40 tools
Max. tool diameter: 76 mm
Maximum diameter when a position is skipped: 127 mm
Max. tool length: 300 mm
Tool-to-tool change time: approx. 1.9 s
Chip-to-chip changeover time: approx. 4.5 s

Dynamics and Design

X/Y/Z Rapid Traverse Speeds: 40 m/min
Acceleration: 3500 mm/s²
Optical Rulers
Machine weight: approx. 9,000 kg
Dimensions: 4155 × 3611 × 3350 mm

🎯 Standard Features

Complete Enclosure of the Machine
650-liter cooling tank + 4-bar pump (40 l/min)

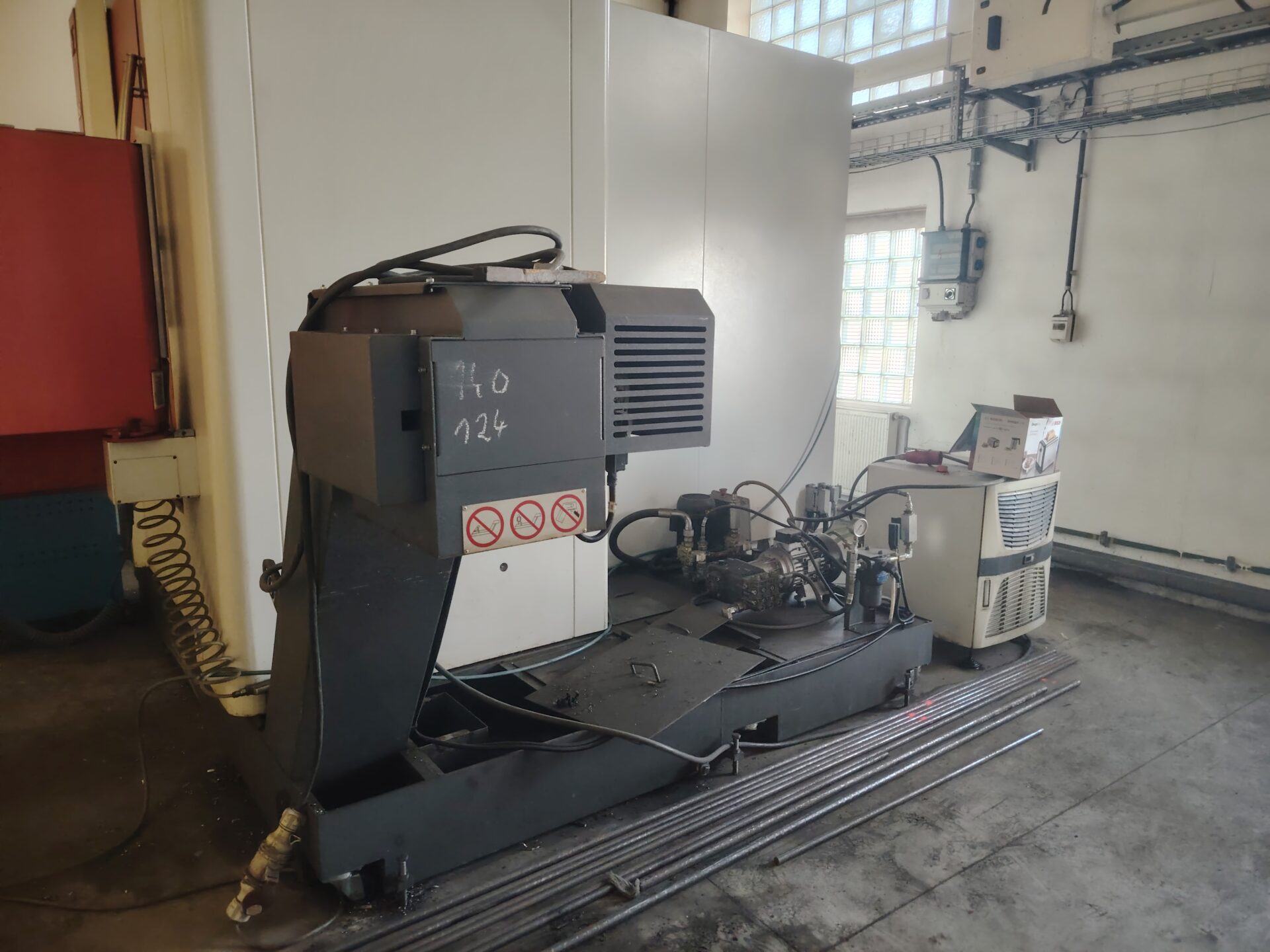

Chip Conveyor
Work Lighting
Rinsing Gun
3-stage light signal system
Cooling of the Electrical Switchgear Cabinet
Hand wheel
Sigma Tool Check

⭐ Special accessories included

Heidenhain TT460 – tool probe (IR or radio)
Heidenhain TS460 – Workpiece Probe (IR or Radio)
Spindle-center cooling: 15 bar (10 l/min, 25 μm filter)
Kinematics Optimizer – for precise 5-axis machining

📩 Contact Information for Those Interested

Andrea Hodková
, Executive Assistant – Sedlacek Trade s.r.o.
📞 +420 773 100 394
📧 hodkova@sedlacek-t.cz

Contacts – Sedlacek Trade s.r.o.

SIGMA COMPACT 5A Five-Axis Machining Center

The SIGMA COMPACT 5A is a high-performance five-axis vertical machining center designed for the complete machining of complex-shaped parts in a single setup. The SIGMA COMPACT 5A’s full five-axis kinematics enable bevel milling, undercut machining, and precision finishing of molds and components made of steel, cast iron, and aluminum. Travel ranges of 1150/570/800 mm and a spindle speed of 12,000 rpm ensure high productivity and surface quality.

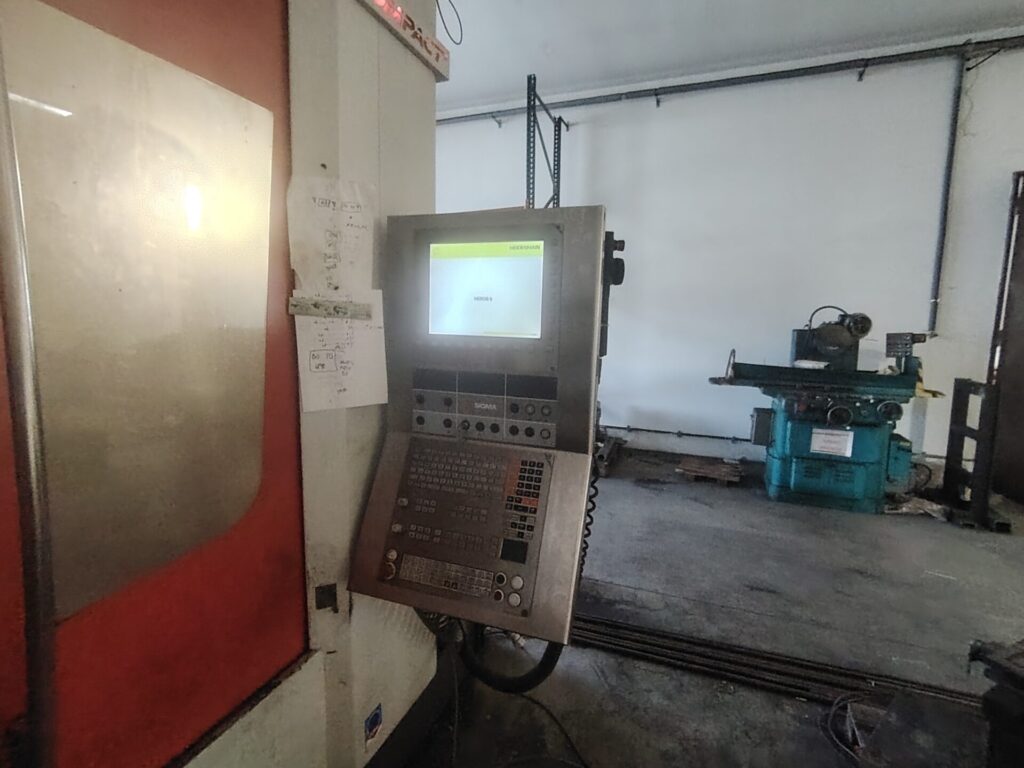

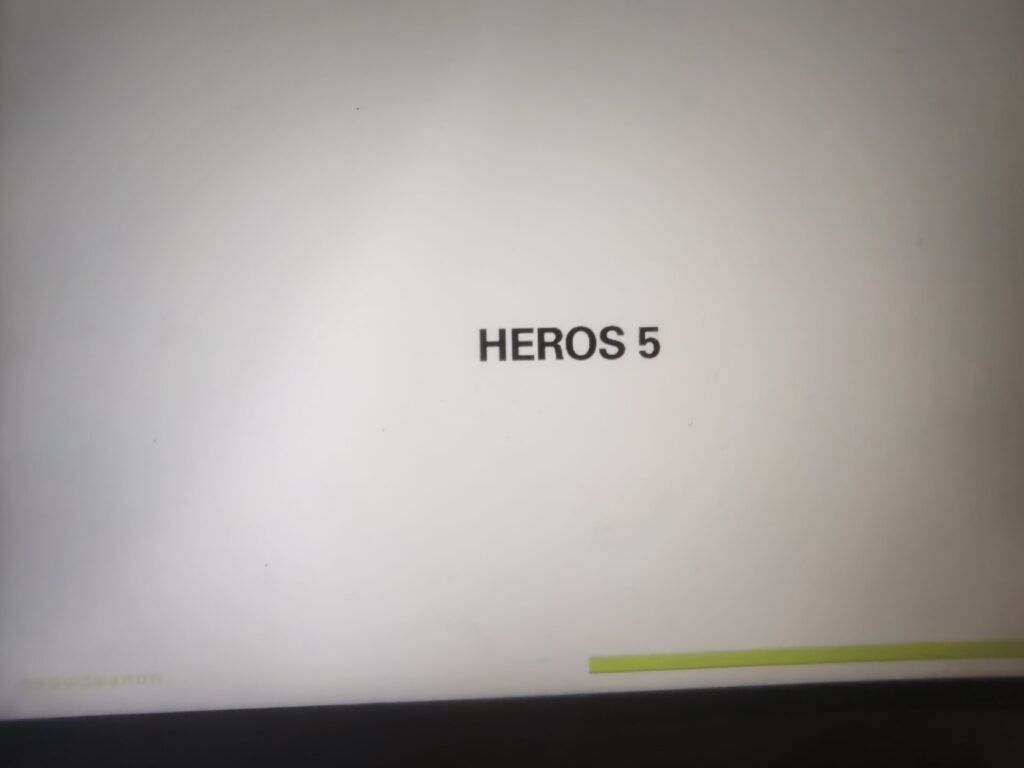

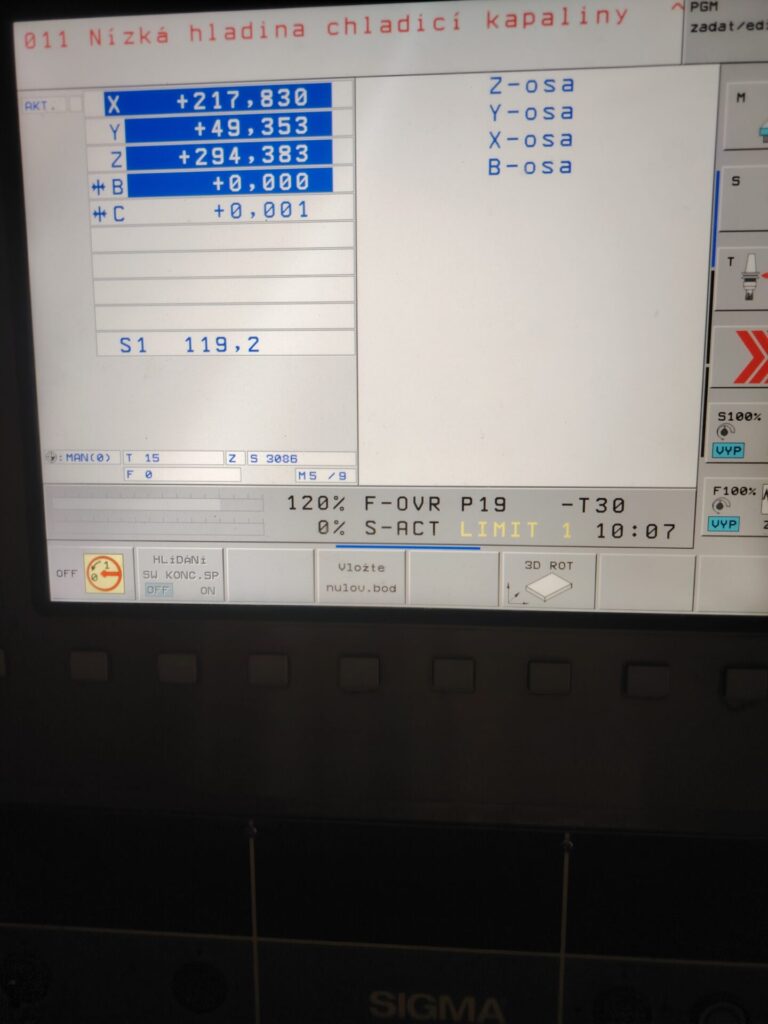

The machine is equipped with a Heidenhain control system, which is popular for shop-floor programming of complex shapes and offers extensive service support. Its robust design and dynamic axes make the SIGMA COMPACT 5A a versatile solution for demanding operations.

Who is the SIGMA COMPACT 5A suitable for?

The SIGMA COMPACT 5A machining center will be appreciated by toolmakers, mold manufacturers, precision parts manufacturers, and custom metal fabricators who need five-axis machining without having to switch or re-clamp workpieces. This allows you to reduce production times and increase the precision of finished parts.

Purchasing a used five-axis machining center is significantly more affordable than buying a new machine, and we guarantee that this unit is in working order and provide a detailed description of its actual technical condition. Upon request, we can arrange a tour and a demonstration of the machine in operation.

Advantages of Five-Axis Machining with the SIGMA COMPACT 5A

Five-axis machining on the SIGMA COMPACT 5A center delivers significant time and cost savings—you can machine a part from multiple sides in a single setup, eliminating handling between operations and reducing the risk of inaccuracies. This is particularly crucial for complex-shaped parts used in the aerospace, automotive, and toolmaking industries.

In addition, our company is the exclusive distributor of this machine, which guarantees transparent provenance, complete documentation, and the option of expert consultation directly with us.

Why Buy the SIGMA COMPACT 5A from Sedlacek Trade

Sedlacek Trade s.r.o. specializes in the sale of pre-owned, inspected CNC machines and provides comprehensive services, from initial inquiries to delivery. You can find more machines in the CNC Centers section or in our complete used CNC machine inventory. For more information about the control system, visit the Heidenhain website.

Frequently Asked Questions

How many axes does the machine have?

The SIGMA COMPACT 5A is a fully five-axis vertical machining center that enables the complete machining of complex-shaped parts in a single setup.

What kind of control system does it have?

The SIGMA COMPACT 5A machine is equipped with a Heidenhain control system, which is popular for shop-floor programming and offers extensive service support.
