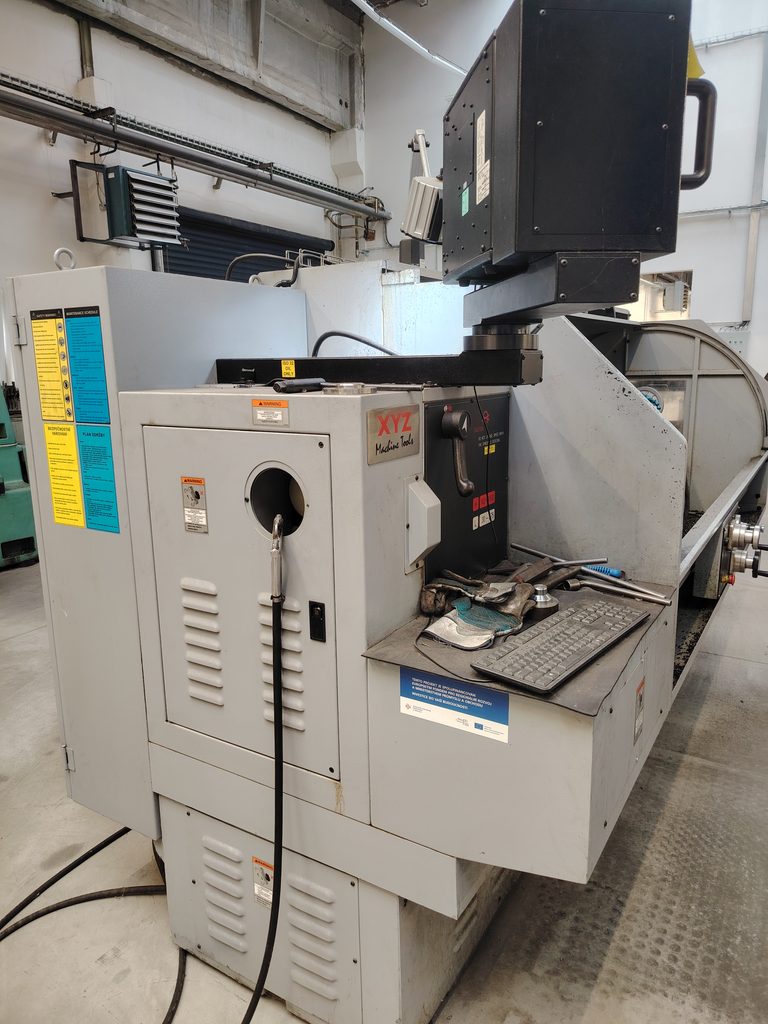

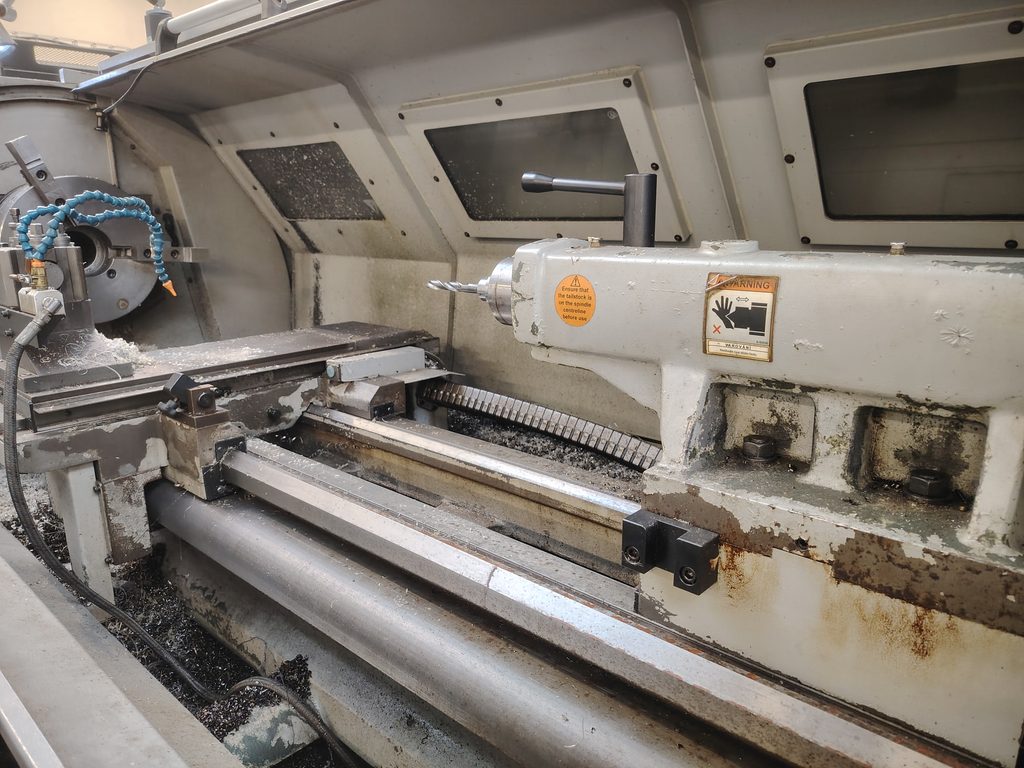

We are offering for sale a 2015 XYZ ProTurn SLX 555 × 1750 CNC center lathe, equipped with the ProtoTRAK SLX shop control system. The machine combines the advantages of a traditional center lathe with the speed of CNC—it’s ideal for applications involving a mix of one-off jobs, repairs, and short runs, and where it isn’t worth writing a program in CAM.

Machine Description

XYZ Machine Tools is a British manufacturer whose ProTurn SLX series is among the most widely used workshop CNC lathes in Europe. This model features a center distance of 1,750 mm and a swing over bed of 560 mm, making it a versatile machine for shafts, flanges, bushings, and longer workpieces.

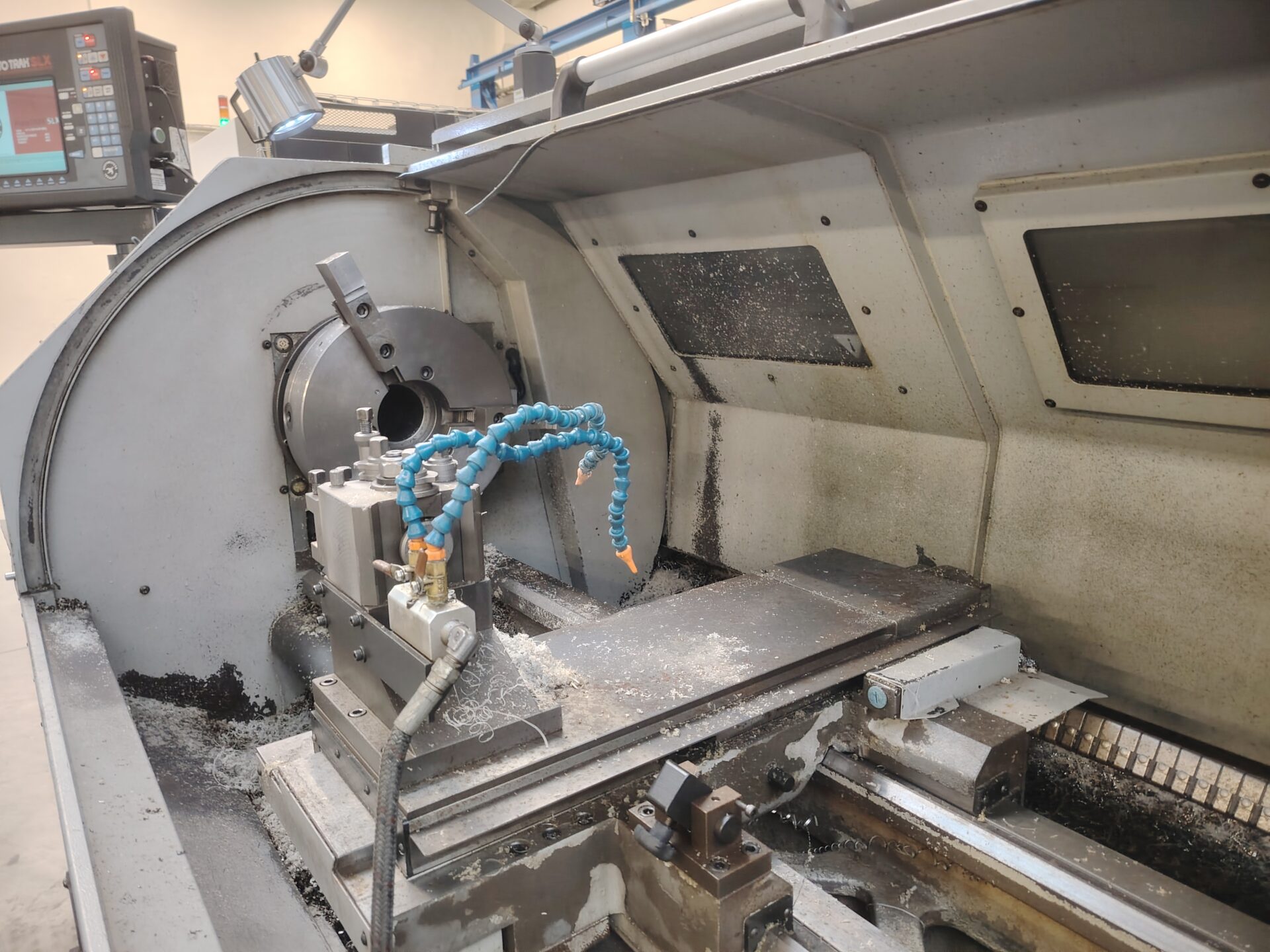

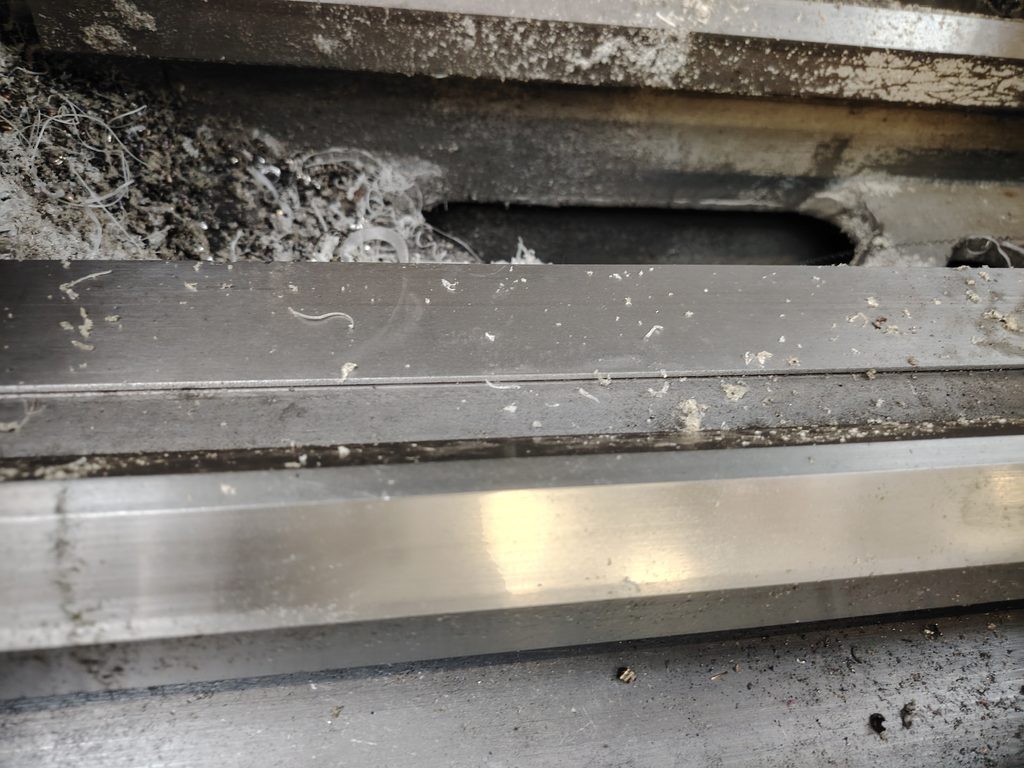

The spindle, with a 104 mm through-hole and a Camlock D1-11 chuck, is mounted on three bearings; driven by an 11-kW motor via a two-stage gearbox with stepless speed control from 30 to 1,800 1/min. The guideways are hardened to HRC 48–52, and the headstock features a wet sump lubrication system with external oil cooling—a design built for round-the-clock operation.

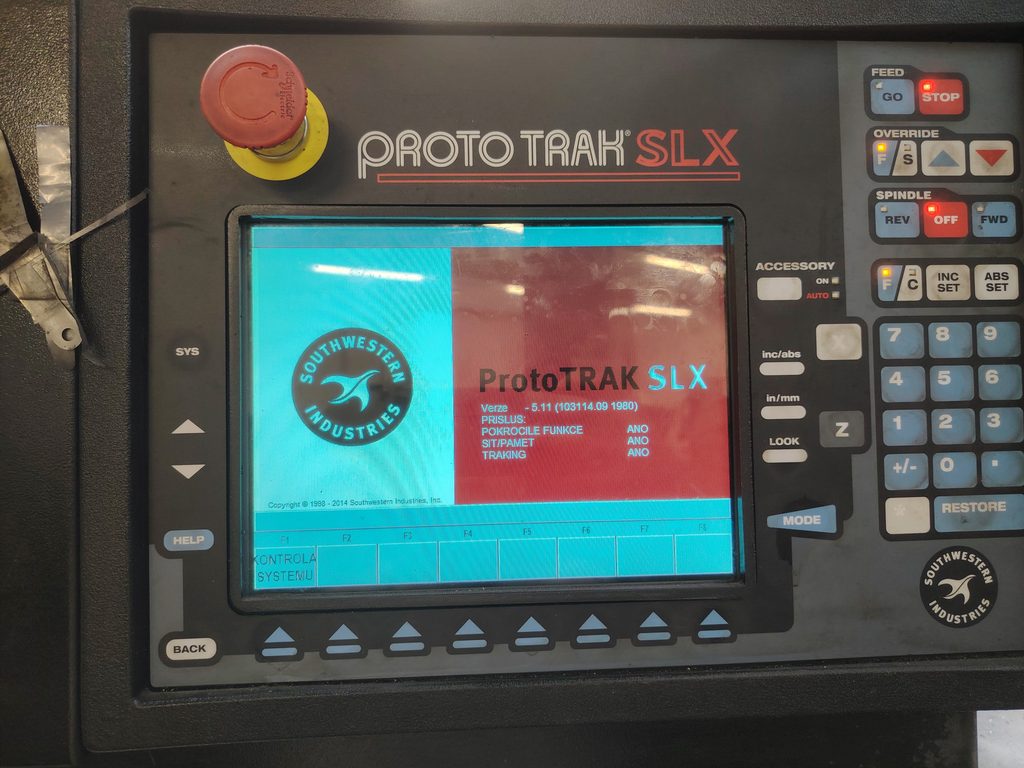

The ProtoTRAK SLX control system allows for programming on the shop floor, directly at the machine, using a simple dialog interface. Operators accustomed to conventional lathes can become familiar with it within a single shift, while having access to cycles for threads, tapered surfaces, radii, and repeat machining. The machine can be operated in both manual and fully automated modes.

Technical Specifications

Manufacturer	XYZ Machine Tools Ltd (UK)
Type	ProTurn SLX 555 × 1750
Year of manufacture	2015
Control System	ProtoTRAK SLX CNC
Distance between the tips	1,750 mm
Effective diameter above the bed	560 mm
Circumferential diameter above the cross slide	350 mm
Transverse Sled Travel	280 mm
Bed width	370 mm
Line Stiffness	HRC 48–52
Spindle Clamping	Camlock D1-11
Through-hole in the spindle	104 mm
Spindle taper	MK7 (in a case)
Spindle diameter at the front bearing	140 mm
Number of spindle bearings	3
Spindle Speed	30–1,800 rpm, two-speed transmission
Main Engine Power	11 kW

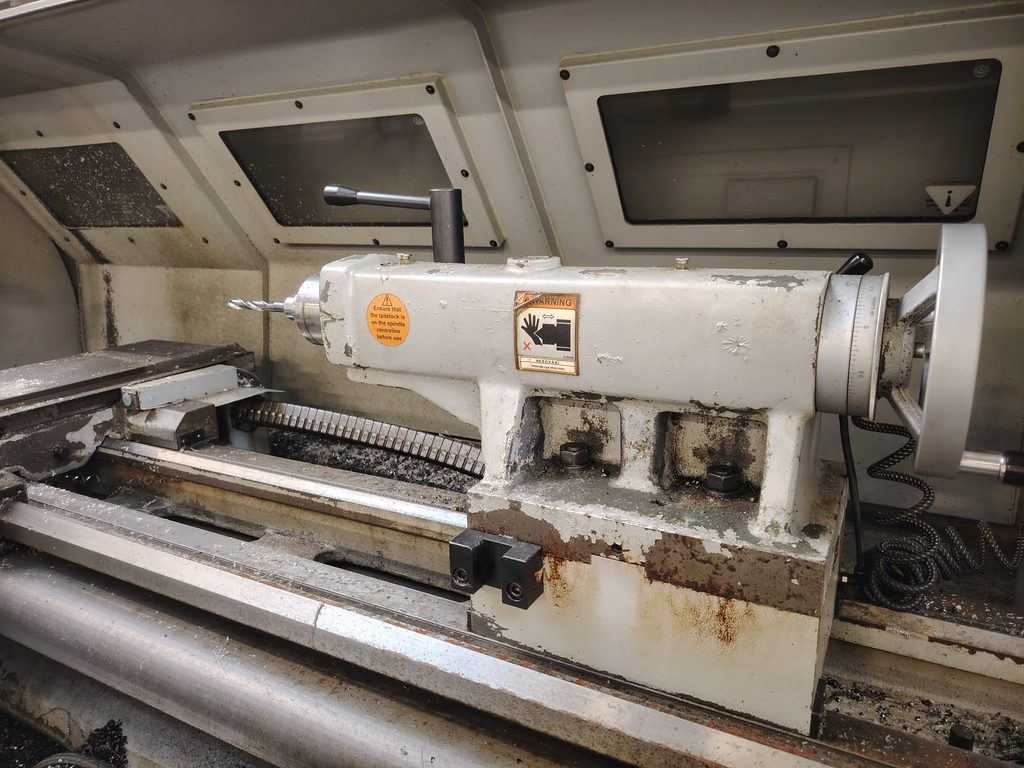

Tailstock Quill Stroke	160 mm
Quill diameter	75 mm
Cone in the tailstock slide	MK5
Max. tool cross-section	25 × 25 mm
X / Z Rapid Feed	6,300 / 2,500 mm/min
Lubricating the spindle housing	wet cabinet with external cooling
Power Supply	400 V / 50 Hz / 3-phase, control voltage 110/24 V
Safety Measures	32 A
Air	6 bar, 2.2 L/min
Machine Dimensions (L × W × H)	approx. 3,350 × 1,600 × 1,650 mm
Weight	3,850 kg
Machine Location	Czech Republic
Price	upon request

Amenities

ProtoTRAK SLX Control System with Touchscreen Dialog Programming

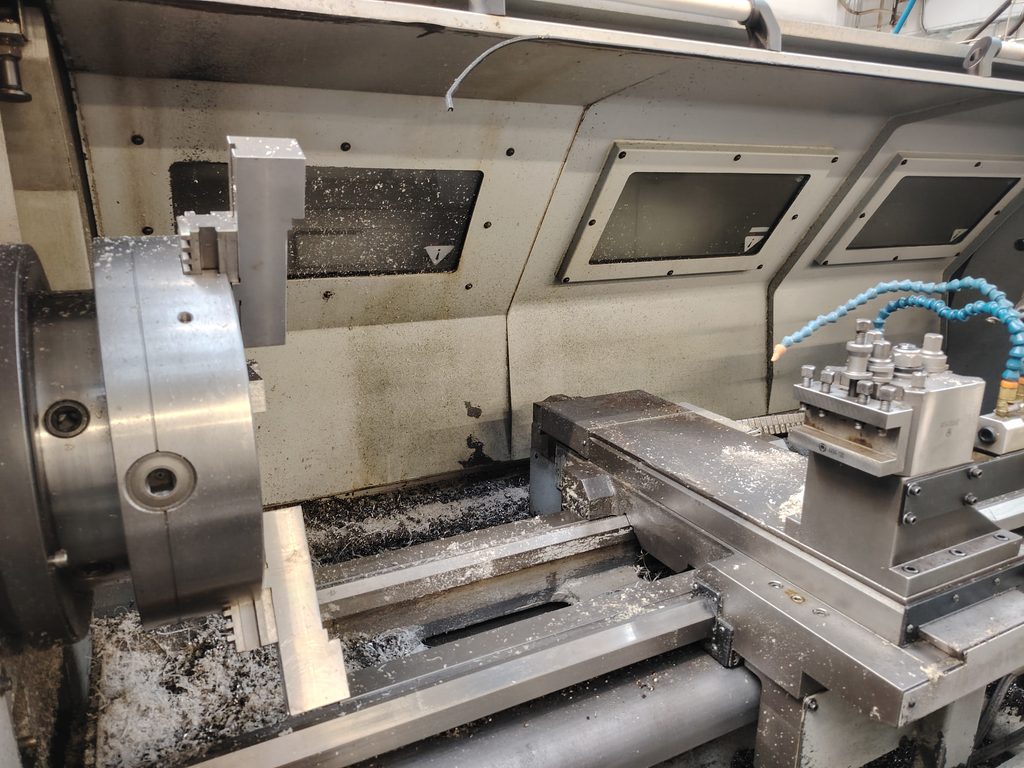

Camlock Chuck D1-11

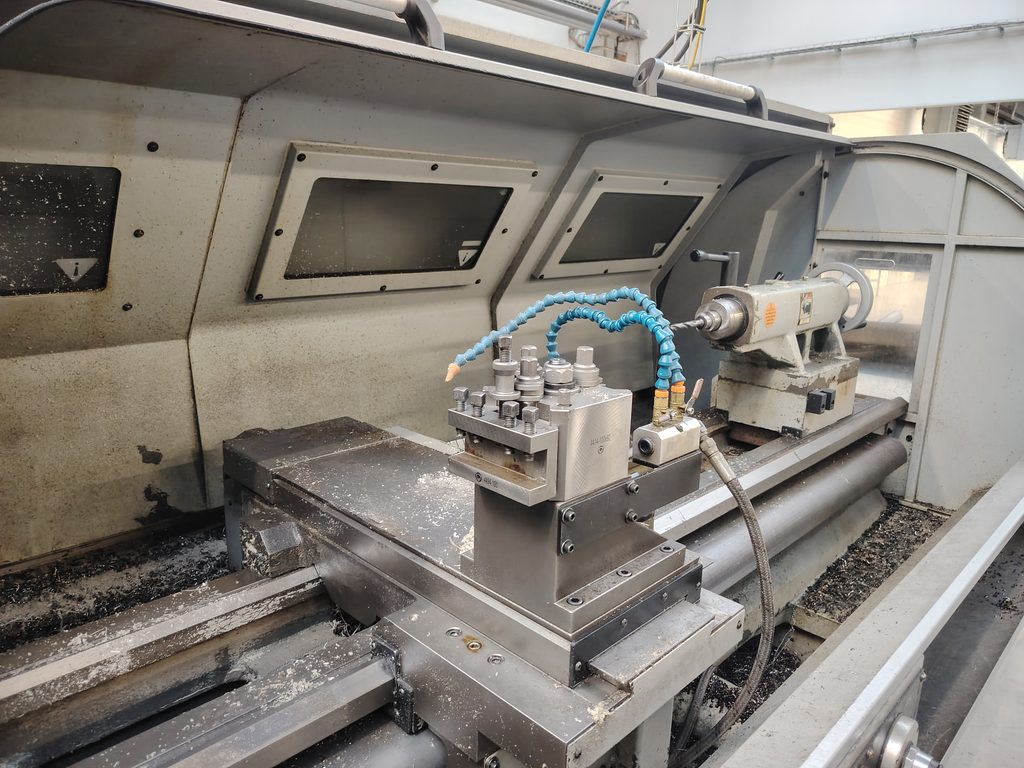

Quick-release blade head
MK5 Lathe with Pinola

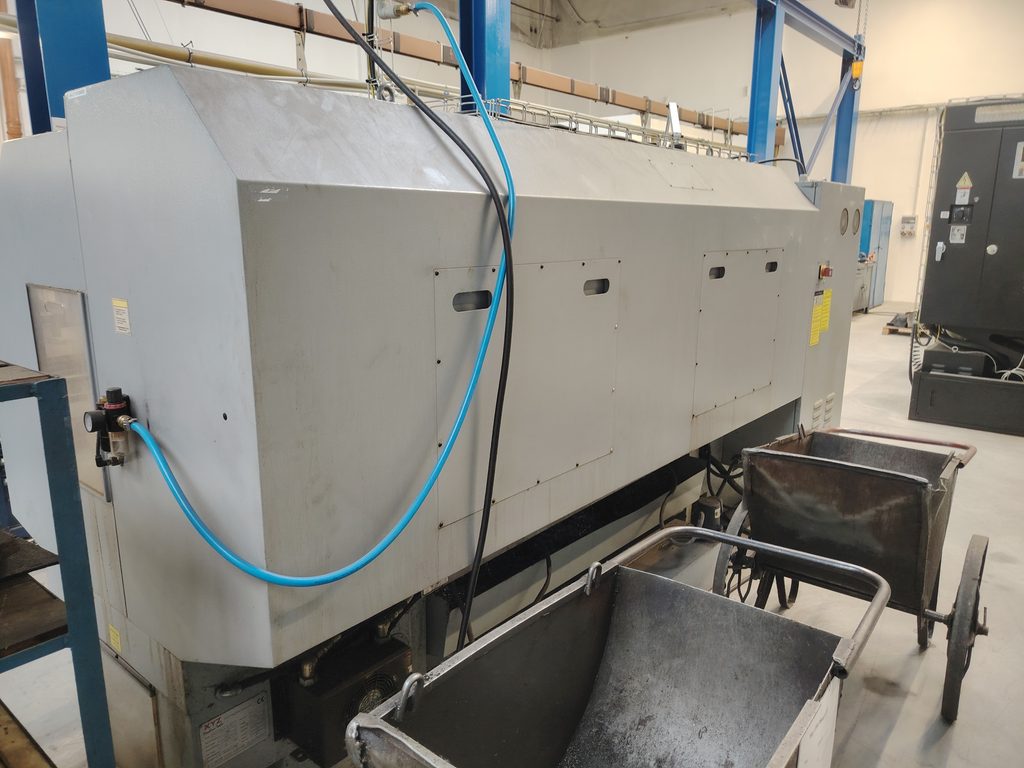

Workstation enclosure with glass windows
Cooling with cutting fluid, rinsing the work area
Conveyor / Chip Trough
Original manual for ProTurn SLX lathes in Czech

Who is this machine suitable for?

Custom Machine Shops — One-off Parts and Small Batches Without the Need for CAM
Maintenance and Repair Services — Shafts, Pins, and Bushings While You Wait
Tool Shops — Precision Turning Up to 560 mm in Diameter
Facilities Switching from Conventional Lathes to CNC Lathes — Operators Can Be Trained Quickly

Machine Condition and Inspection

The machine is complete and in working order, with normal signs of wear and tear consistent with its age and usage. We offer a free in-operation tour or a detailed video—including a demonstration of spindle operation, axis travel, and ProtoTRAK control functions. We’d be happy to provide photos of specific components based on your interests.

What We Can Do for You

Transport throughout the EU — oversized shipments, crane services, customs documentation, EORI
Professional installation — setup, bed leveling, connection, and operator training
Machine Financing — Leasing and Loans, Down Payment Starting at 10%, Approval Usually Within 5 Business Days
Trade-in — We'll provide a quote for your machine within 2 business days based on photos and the label
