High-performance 6-axis press brake for demanding metalworking

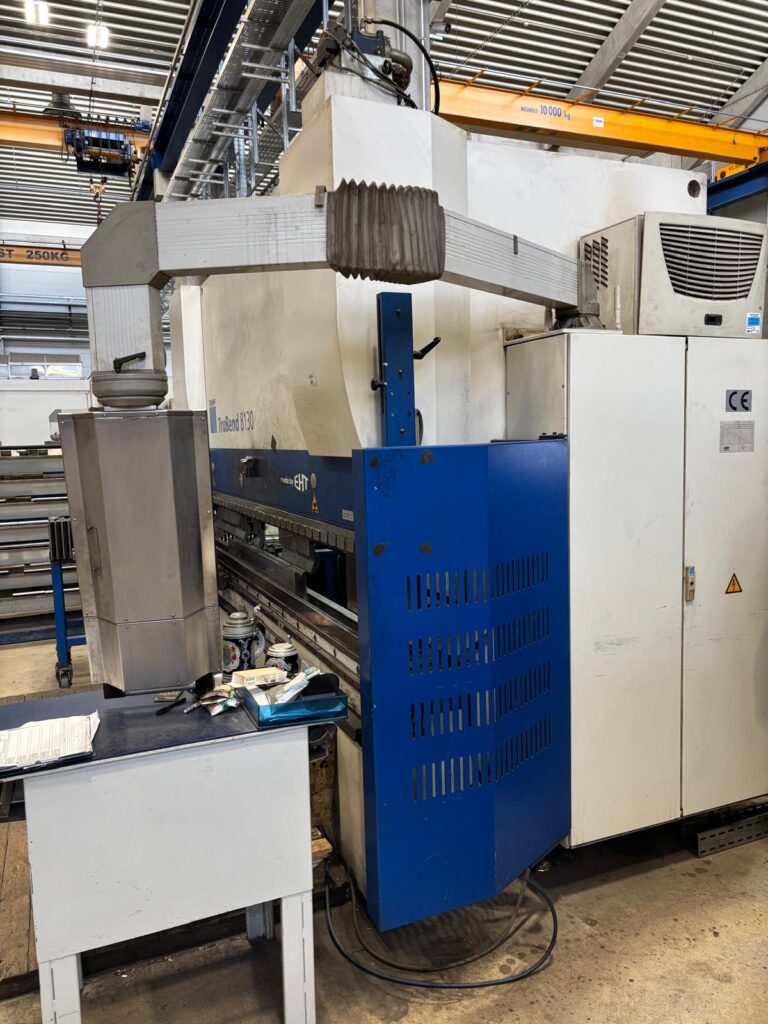

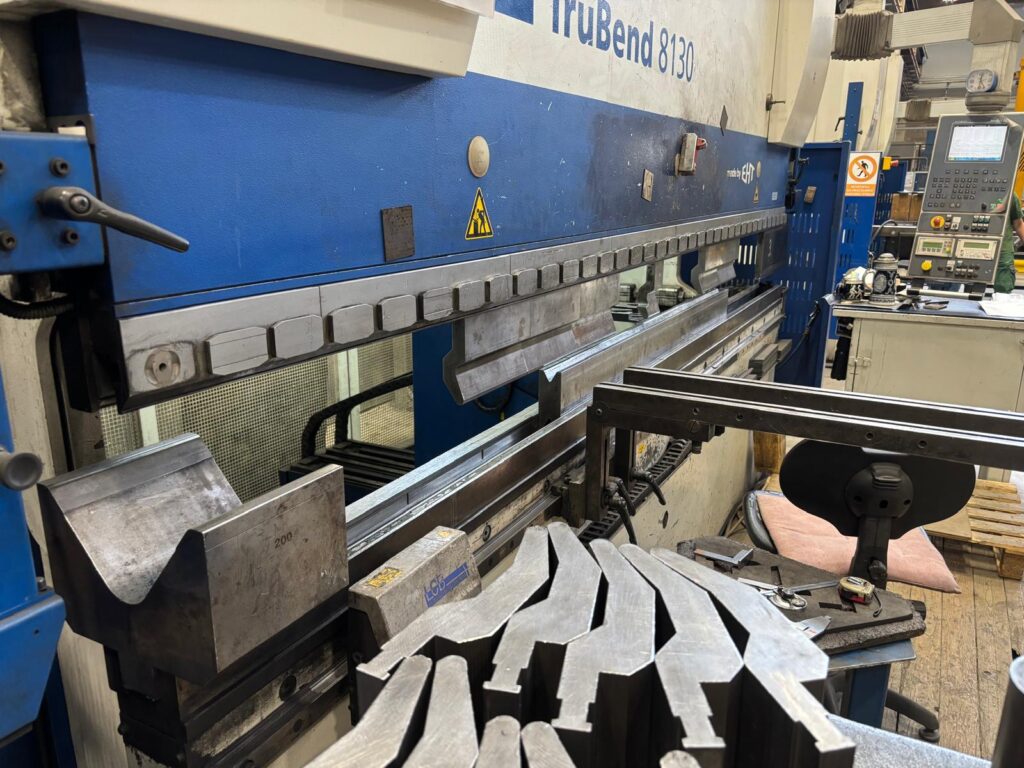

Are you expanding your workshop capacity or looking for a reliable solution for bending longer and thicker sheet metal? We are offering for sale the robust hydraulic press brake EHT TRUMPF TruBend 8130 (year of manufacture 2007). This machine represents the ideal combination of massive construction, above-standard bending length and top German precision that delivers uncompromising results even in continuous operation.
With an impressive pressing force of 130 tonnes (1300 kN) and a maximum bending length of 3550 mm, this model is designed for processing large parts. The machine is equipped with an advanced back gauge system with 6 controlled axes (X1, X2, R1, R2, Z1, Z2), allowing precise and fast processing of even the most complex shaped bends in a single clamping.
Price: 23,000 EUR
Key competitive advantages of the machine:
- Premium capacity: A pressing force of 130 tonnes combined with a length of 3550 mm provides enormous flexibility for both custom and series production.
- Fully controlled 6-axis back gauge: Independent axis control (X1, X2, R1, R2, Z1, Z2) enables the bending of complex and asymmetric parts with maximum accuracy.

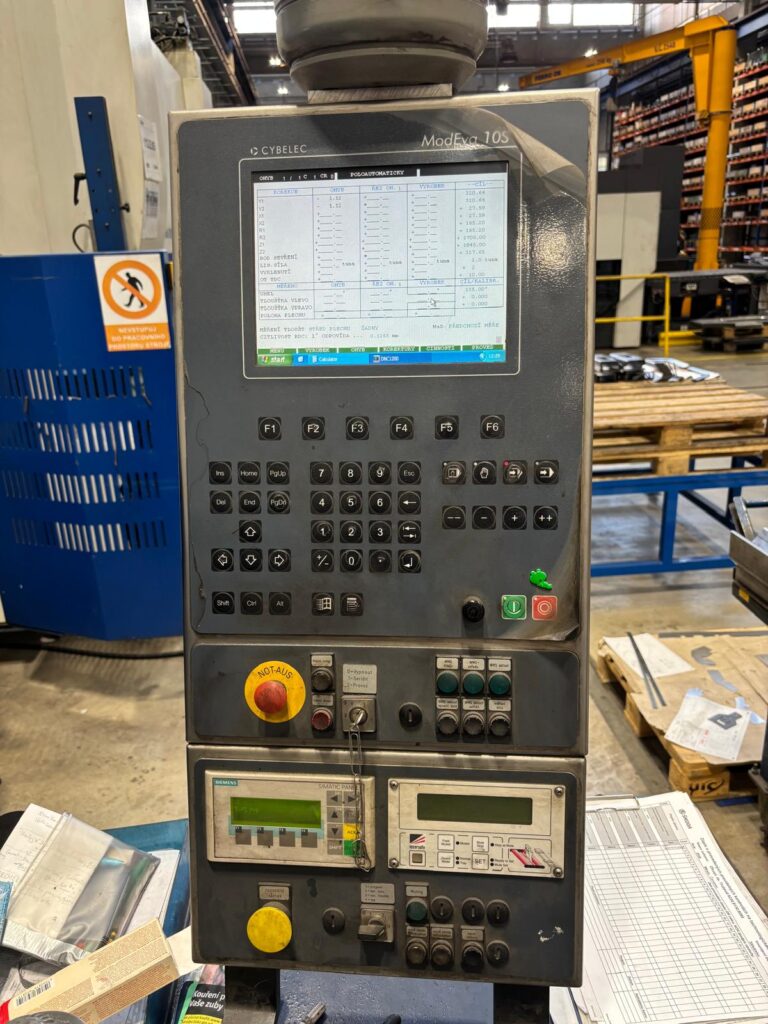

- Professional CNC control: The CYBELEC ModEva 10 S system offers a clear operator environment, fast bend simulations and efficient program management.
- Optimised dynamics: A higher approach speed (170 mm/s) shortens production cycles and increases the daily productivity of the workplace.
- Robust mechanics: EHT construction standards (a member of the TRUMPF Group) with a total weight of 12,700 kg ensure maximum frame rigidity and the elimination of unwanted deformation.
Technical specification and parameters
| Parameter | Value |
|---|---|
| Model / Manufacturer | EHT TRUMPF TruBend 8130 |
| Year of manufacture | 2007 |
| Serial number | B0601A0025 |
| Price | 23,000 EUR |
| CNC control unit | CYBELEC ModEva 10 S |
| Number of controlled axes | 6 (X1, X2, R1, R2, Z1, Z2) |
| Maximum pressing force | 130 t (1300 kN) |
| Maximum bending length | 3550 mm |
| Distance between columns | 3050 mm |
| Throat depth (gap in side frames) | 405 mm |
| Ram stroke | 400 mm |
| Max. table–ram distance | 720 mm |
| Min. table–ram distance | 320 mm |
| X1 / X2 gauge range | 5–860 mm (speed 500 / 250 mm/s, power 1.25 kW) |
| R1 / R2 axis range | 0–250 mm (speed 300 mm/s, power 1.25 kW) |
| Z1 / Z2 axis range | 595–2830 mm / 725–2960 mm (speed 1000 mm/s) |
| Working speeds | Approach: 170 mm/s | Bending: 10 mm/s | Return: 180 mm/s |
| Hydraulic system | Pressure: 330 bar | Oil tank volume: 250 l |
| Pneumatic system | Pressure: 4.5–6 bar |
| Total installed power | 24 kW (main motor 15 kW) |
| Power supply / Fuse | 3× 400 V; 50 Hz | Main fuse rated current 63 A |
| Machine dimensions (L × W × H) | 5660 × 3590 × 3088 mm |
| Machine weight | 12,700 kg |
Machine condition and readiness for operation
The equipment comes from an expertly managed engineering operation where it was regularly maintained. The construction shows stable geometric accuracy. The machine is fully functional and ready for demonstration, testing and immediate integration into your production process.
Interested in viewing the machine?
Contact our sales department. We will gladly provide further information, send complete photo documentation, or arrange a date for a personal inspection of the press in real operation.
