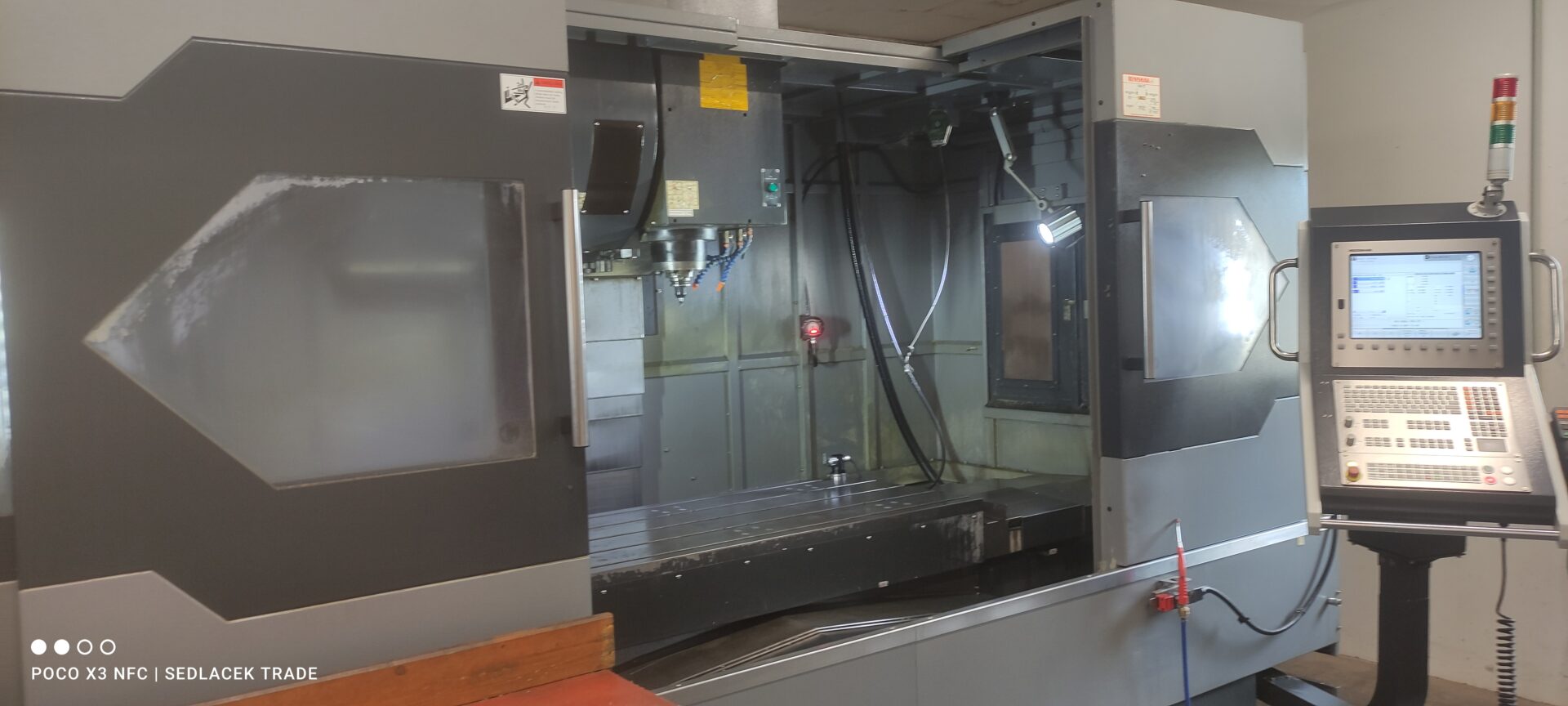

The three-axis milling center with the HEIDENHAIN iTNC620 system, known as the CV-14B model from KAFO, is a high-performance machine that offers state-of-the-art machining capabilities. With its features and specifications, this machine enables efficient mold machining and the production of high-precision parts from various materials, including steel, cast steel, cast iron, and light- and non-ferrous metal alloys.
Machine Specifications:
Robust Construction and Dimensions

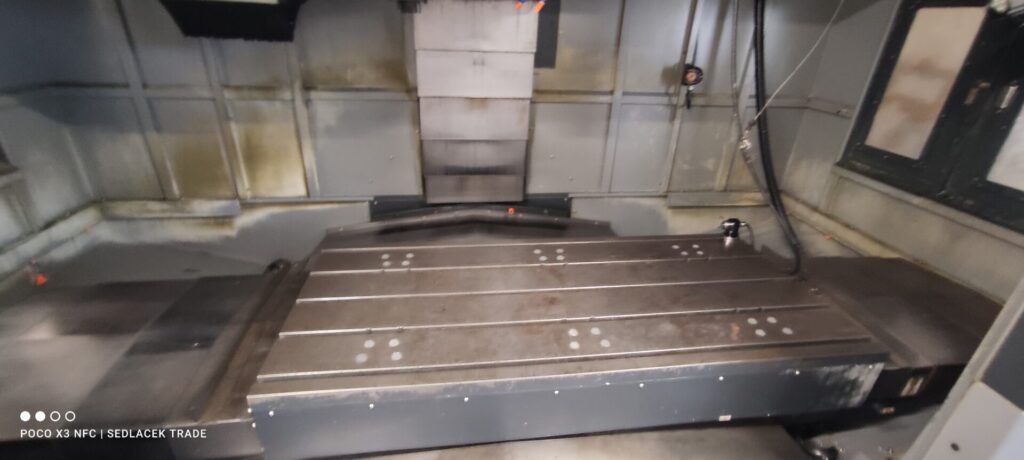

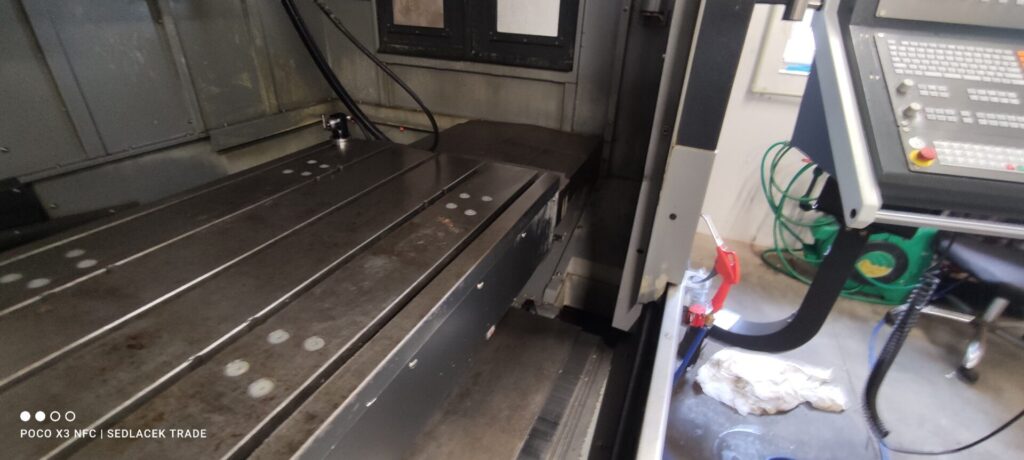

With X, Y, and Z-axis travel of 1400 x 700 x 700 mm, this milling machine provides ample workspace for a variety of projects. With a table size of 1550 x 700 mm and a maximum load capacity of 1600 kg, it allows for the machining of large and heavy workpieces.
High Performance

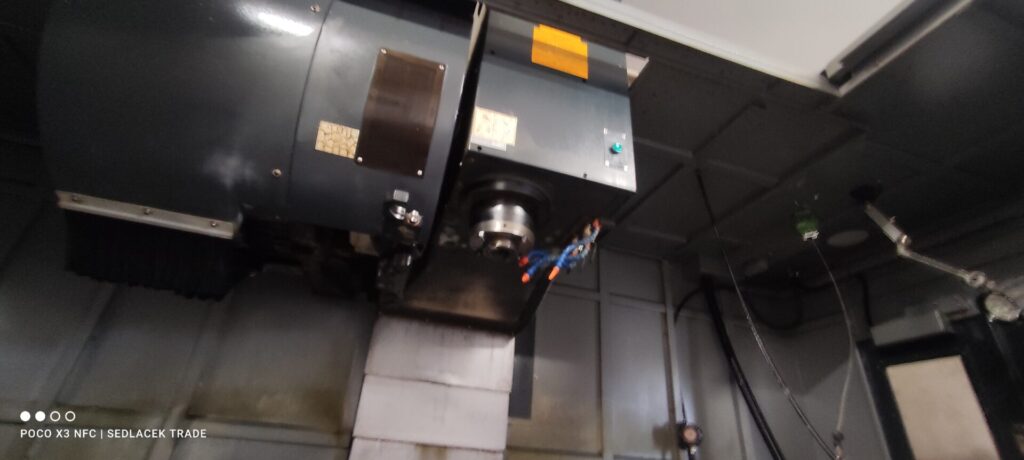

Spindle speed is a key parameter in machining. This machine features a belt-driven spindle with a speed of 8,000 rpm and a direct-drive spindle with speeds of 10,000, 12,000, and 15,000 rpm, enabling fast and efficient milling of a wide range of materials.
Accuracy and Reliability
Thanks to the 45-mm roller linear guide system and the high-precision HEIDENHAIN iTNC620 control, this machine is capable of achieving highly accurate results. The distance from the spindle tip to the table surface is adjustable within a range of 100–800 mm, allowing for optimization for various types of operations.
Flexibility
The automatic tool changer (ATC) system, with a tool-to-tool change time of 2 seconds and a chip-to-chip time of 5 seconds, increases production efficiency and enables quick switching between different tools.
Modern Design and Ease of Use

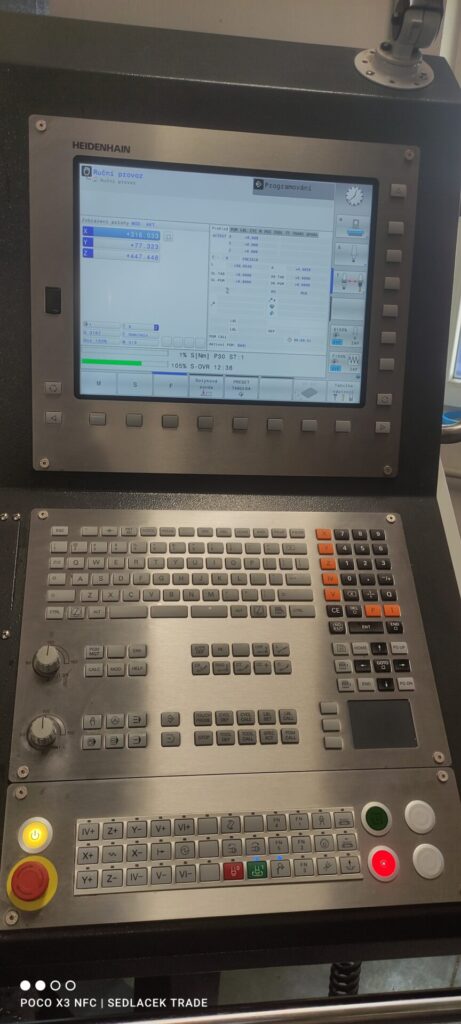

This model features a modern design that ensures easy operation and maintenance. The HEIDENHAIN iTNC620’s user-friendly interface provides operators with intuitive control and the ability to program complex operations.
Conclusion
The KAFO CV-14B three-axis milling center, equipped with the HEIDENHAIN iTNC620 system, offers a combination of high performance, precision, and reliability, making it the ideal choice for mold machining and the production of precision parts. With a maximum table load of 1,600 kg and a robust design, this machine is a suitable partner for a variety of industrial applications.
