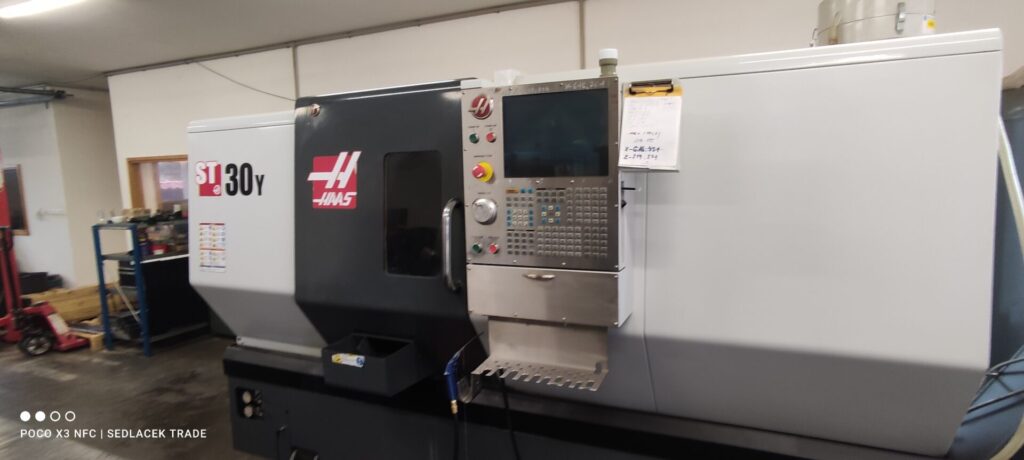

Name: Haas ST 30Y – CNC Lathe for Sale (2015) | Sedlacek Trade
Brand: Haas
SKU: HAAS-ST30Y-2015
Price: 52000 EUR
Availability: InStock

Are you looking for a versatile CNC lathe that can handle the complete machining of a part in a single setup? Sedlacek Trade s.r.o. is offering for sale a proven Haas ST 30Y CNC lathe, manufactured in 2015, equipped with a Y-axis, a counter-spindle, and both radially and axially driven tools. The machine is fully functional and ready for a demonstration.

About the Haas ST 30Y Machine

The Haas ST 30Y is a CNC lathe with a Y-axis, C-axis, and powered tools, enabling the production of precision parts from all sides in a single setup—turning, milling, and off-axis drilling without re-clamping. Thanks to its counter-spindle, it can handle complete machining of a part, including the opposite side. It is suitable for machining steel, ferrous and non-ferrous metals, copper, brass, bronze, and a wide variety of plastics.

Technical Specifications

Basic Parameters

Parameter	Value
Model	Haas ST 30Y
Manufacturer	Haas Automation, Inc., USA
Year of manufacture	2015
Chuck Size	254 mm
Maximum workpiece diameter	533 mm
Max. turning diameter (with BMT65 turret)	349 mm
Max. turning length	826 mm (depending on workpiece clamping)
Rod Capacity	76 mm
Distance between centers	826 mm
Spindle Bore	ø 88.9 mm

Axle Bearings

Parameter	Value
X-axis – travel / rapid traverse / max. force	239 mm / 12 m/min / 18,238 N
Y-axis – travel / rapid traverse / max. force	± 51 mm / 12 m/min / 10,231 N
Z-axis – travel / rapid traverse / max. force	826 mm / 24 m/min / 22,686 N

Main Spindle and C-Axis

Parameter	Value
Max. spindle power	22.4 kW
Max. RPM	3,400 rpm
Max. torque	407 Nm @ 500 rpm
Max. torque with optional transmission	1,356 Nm @ 150 rpm
C-axis – max. power / RPM	3.7 kW / 60 rpm
C-axis – positioning accuracy	± 0.01°
Brake – Diameter / Holding Torque	353 mm / 339 Nm

Counter-spindle (sub-spindle)

Parameter	Value
Chuck Size	165 mm
Max. RPM	4,100 rpm
Max. synchronized speed with the main spindle	4,100 rpm
Spindle Bore	ø 46.0 mm × 40.6 mm
Through-hole without a chuck	58.7 mm
Spindle Alignment Accuracy	± 0.02°
B-axis rapid traverse	10 m/min

Turret and Powered Tools

Parameter	Value
Number of tool stations	12 (BMT65)
Maximum speed of powered tools	4,000 rpm
Rear spindle clearance (from the rear of the head)	102 mm

General and Electrical Specifications

Parameter	Value
Coolant Volume	208 l
Air consumption	113 l/min @ 6.9 bar (min. pressure 5.5 bar)
Input voltage (3-phase) – low	220 VAC / 70 A
Input voltage (3-phase) – high	440 VAC / 35 A

Why this particular machine?

Complete machining in a single setup—the Y-axis, C-axis, counter-spindle, and powered tools eliminate the need for additional operations on the milling machine.
The powerful 22.4 kW spindle, with a torque of 407 Nm, can handle even the heaviest cuts.
Service Availability – Haas has a widely available service network and spare parts in the Czech Republic and throughout Europe.
Demonstration available – the machine can be viewed and seen in operation by appointment.

Inspection, Transportation, and Financing

The machine can be viewed in person by appointment. Upon request, we can send more detailed videos, photo documentation, and complete technical specifications. We arrange for shipping and installation throughout the EU. We also offer financing for this offer in the form of a loan or lease—see the Machine Financing page for more information.

Who Is the Haas ST 30Y CNC Lathe Ideal For?

The used Haas ST 30Y CNC lathe will be appreciated by machine shops specializing in precision turned parts with milled features—such as flanges, pins, hydraulic components, or parts for the automotive industry. The combination of the Y-axis, counter-spindle, and live tools makes it a compact alternative to a machining center, at a significantly lower purchase price than a new machine.

You can find more pre-owned machines in our selection of CNC lathes in the CNC machine marketplace. Are you interested in this machine, or do you need help choosing one? Contact us—we’ll discuss your requirements with no obligation and prepare a specific quote, including shipping and commissioning.
