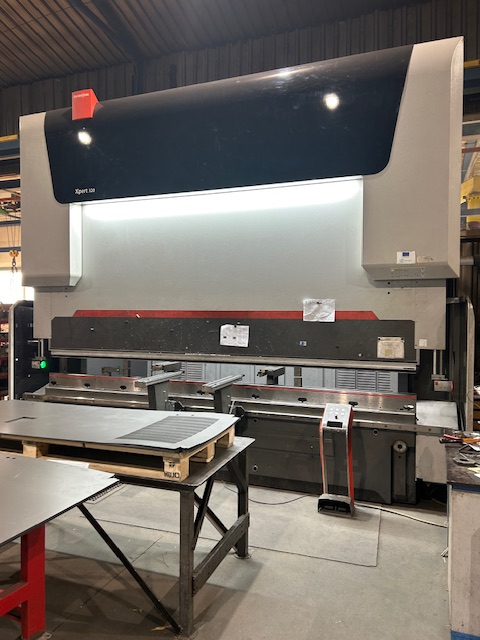

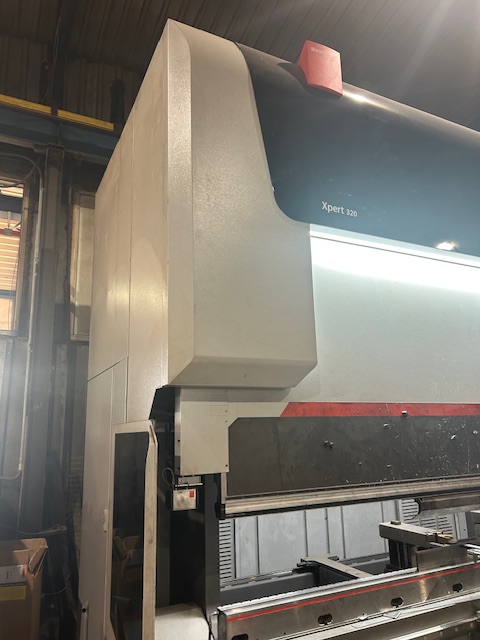

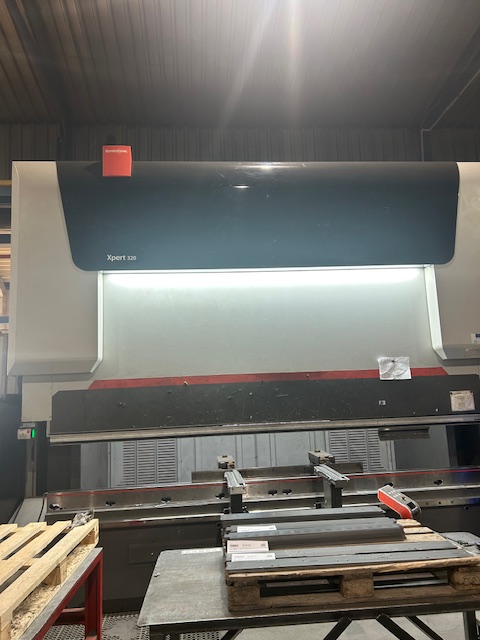

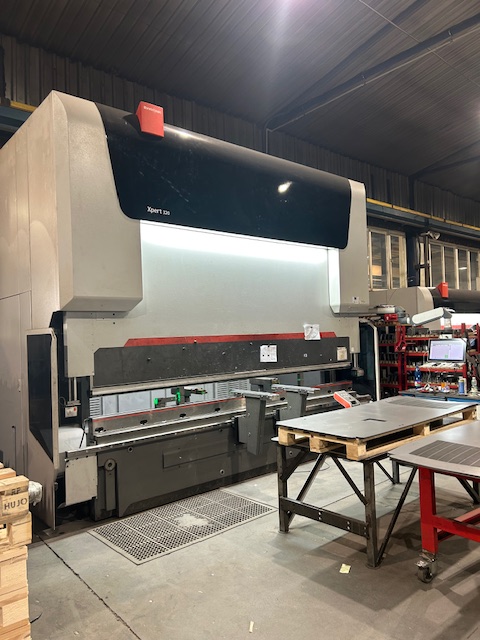

We are offering for sale a high-performance Bystronic Xpert Pro 320/4100 press brake, the ideal choice for industrial bending with maximum precision and efficiency.
Technical Specifications:
- Year of manufacture: 2018
- Pressing force: 3,200 kN
- Bend length: 4,100 mm
- Standard stroke: 450 mm (Extended version) / 250 mm (standard version)
- Installation height: 840 mm (Extended version) / 640 mm (standard version)
- Distance between the side posts: 3,750 mm
- Overhang: 400 mm
- Table width: 60 mm
- Number of operating hours: 24,375 (the machine is still in operation)
- Number of cycles (bends): 1,261,599
- Total number of axles: 9

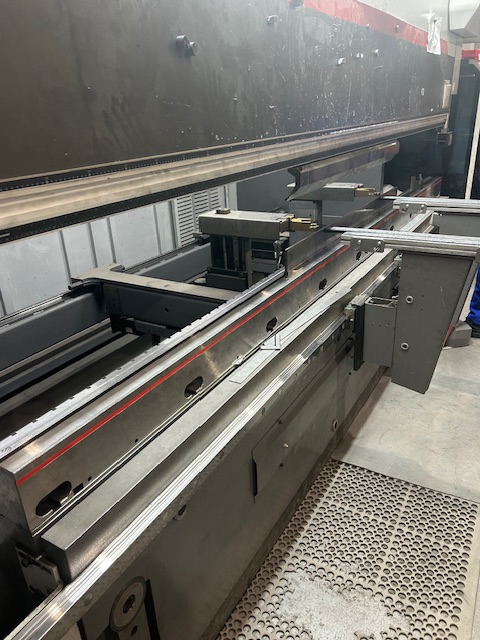

- Number of axes on the rear stop: 6
- Control System: Bystronic – BySoft
Axes and Movements:
- Max. travel range along the X-axis: 1,050 mm
- X-axis travel: 600 mm
- Max. travel speed of the X-axis: 650 mm/s
- X-axis accuracy: ±0.04 mm
- R-axis travel: 250 mm
- Max. travel speed of the R axis: 200 mm/s
- R-axis accuracy: ±0.1 mm
- Z-axis travel: 2,900 mm
- Max. travel speed of the Z-axis (4/5 axes): 1,500 mm/s
- Max. travel speed of the Z-axis (6 axes): 1,200 mm/s
- Z-axis accuracy: ±0.1 mm
- Y-axis accuracy: ±0.004 mm
Energy requirements:
- Oil capacity: 600 l
- Power (Classic, Performance Edition): 34 kW
- Power (Dynamic Edition): 41 kW
Dimensions and weight:
- Machine length: 5,260 mm
- Machine width: 2,000 mm
- Machine height: 3,750 mm (Extended version) / 3,170 mm (Standard version)
- Weight: 27.3 t (Extended version) / 24.3 t (standard version)
Recommended installation area:
- Length: 7,000 mm
- Width: 4,500 mm
- Height: 4,200 mm
Key Features:
- Precise bending thanks to a patented dynamic crowning system.
- High flexibility with a 9-axis configuration, including 6 axes on the rear stop.
- Intuitive control via BySoft Cell Control Bend for fast and efficient work.
The machine is fully functional, in operation, and ready for immediate use. An excellent choice for manufacturing companies looking for a reliable and high-performance press brake.
