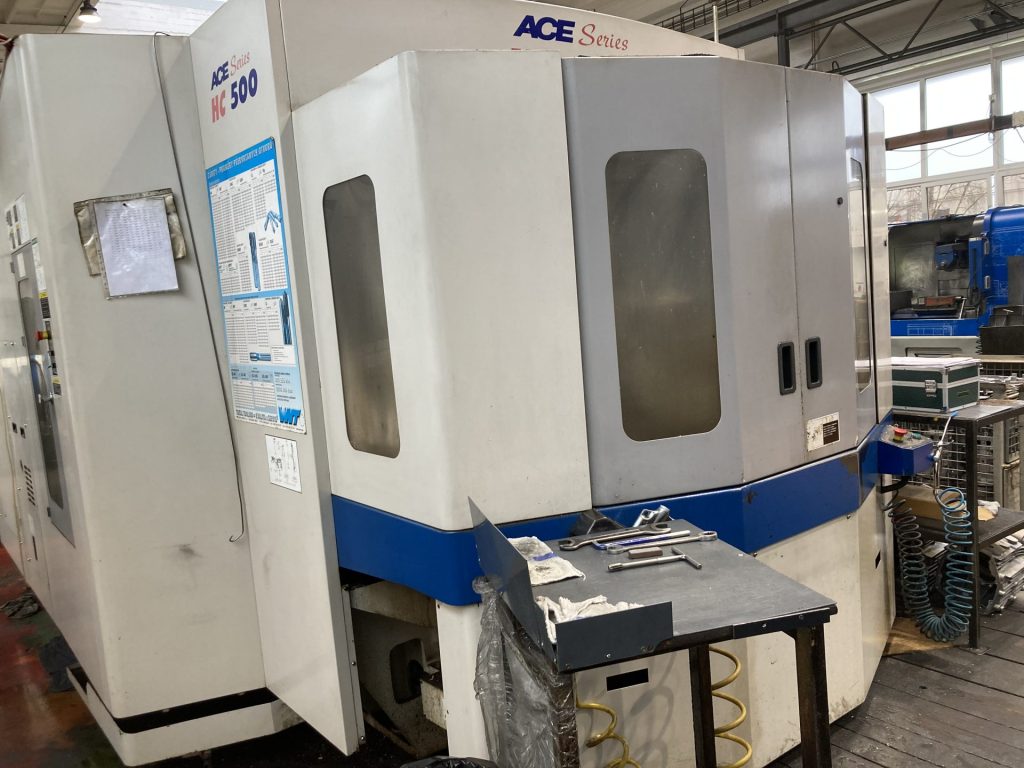

DEAWOO ACE HC 500 – Horizontal Machining Center

BySedlacek Trade
Deawoo ACE HC 500 5

We are offering for sale a DEAWOO ACE HC 500 horizontal machining center, purchased new in 2007.
The machine has undergone significant maintenance and is in very good technical condition, ready for immediate use in production.

  • Complete spindle overhaul – Summer 2023
  • Replacement of the Z-axis Ball Screw – 2020
  • Stable, precise, and reliable operation

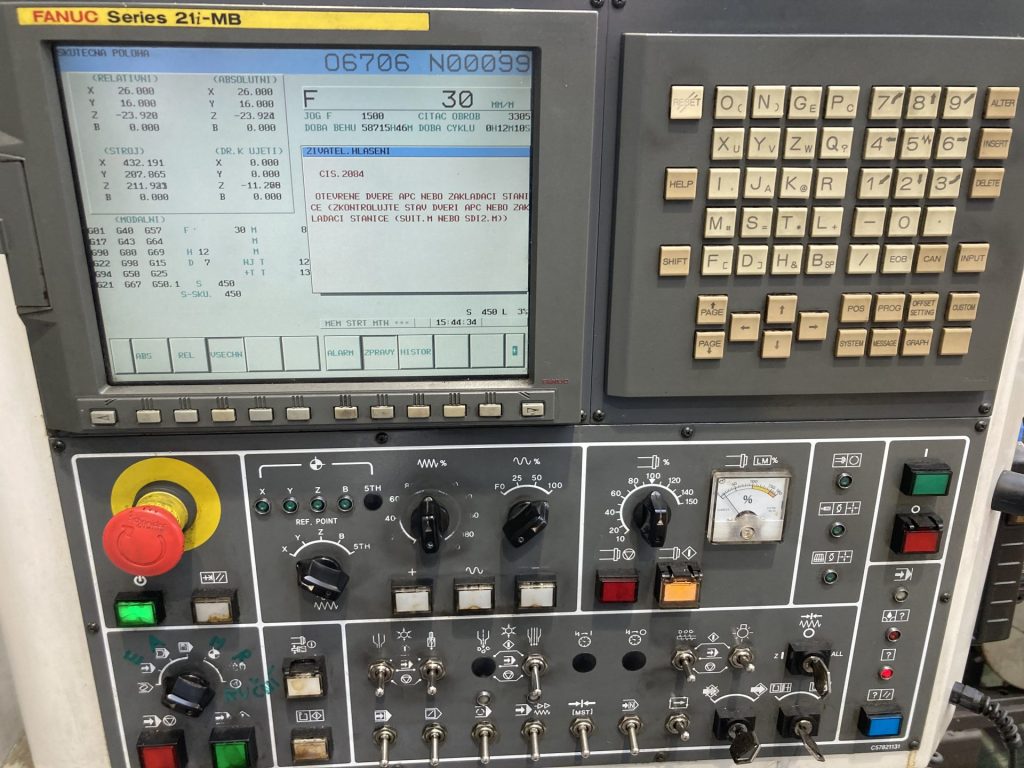

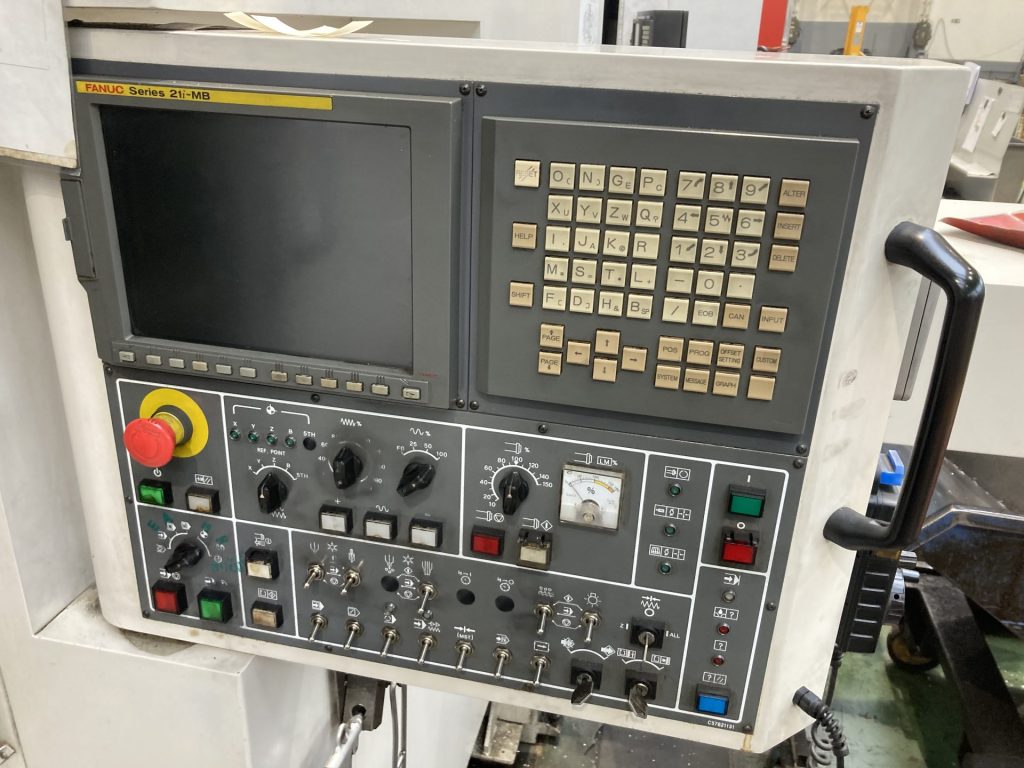

  • FANUC Control System

Technical Specifications

Travel and Working Ranges

  • X-axis: 850 mm
  • Y-axis: 700 mm
  • Z-axis: 750 mm
  • Feed rate: 1–24,000 mm/min
  • Rapid traverse: 48 m/min in all axes
  • Positioning accuracy: ± 0.005 mm
  • Distance from spindle nose to table: 150–900 mm
  • Distance between the spindle axis and the pallet surface: 50–750 mm

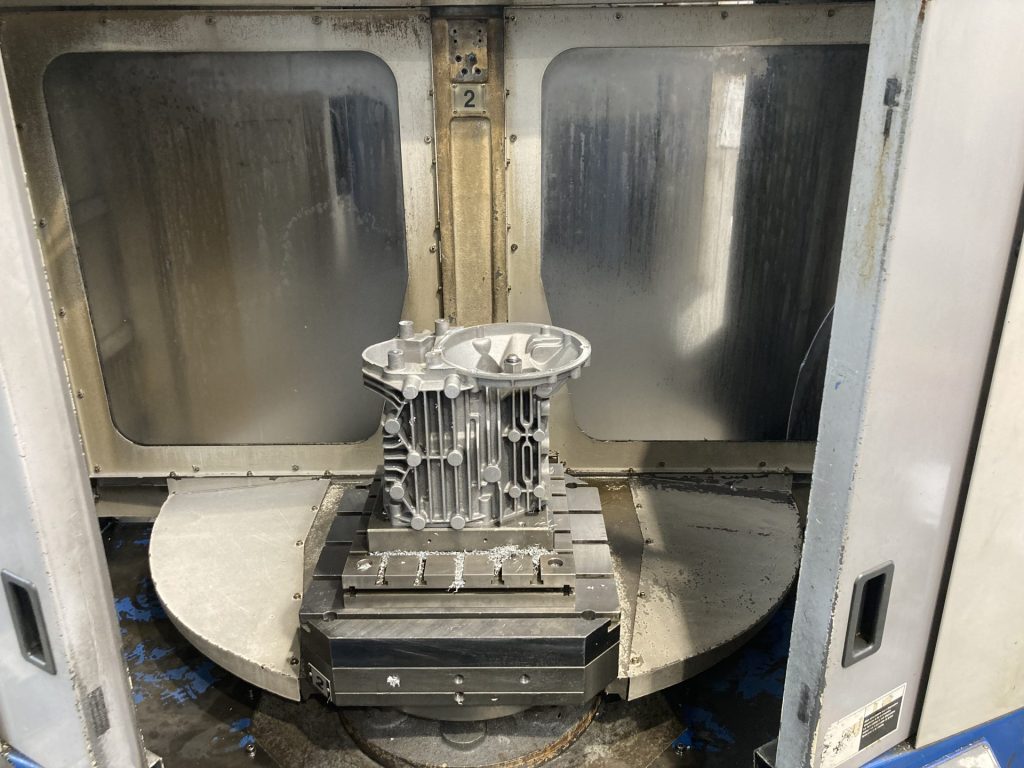

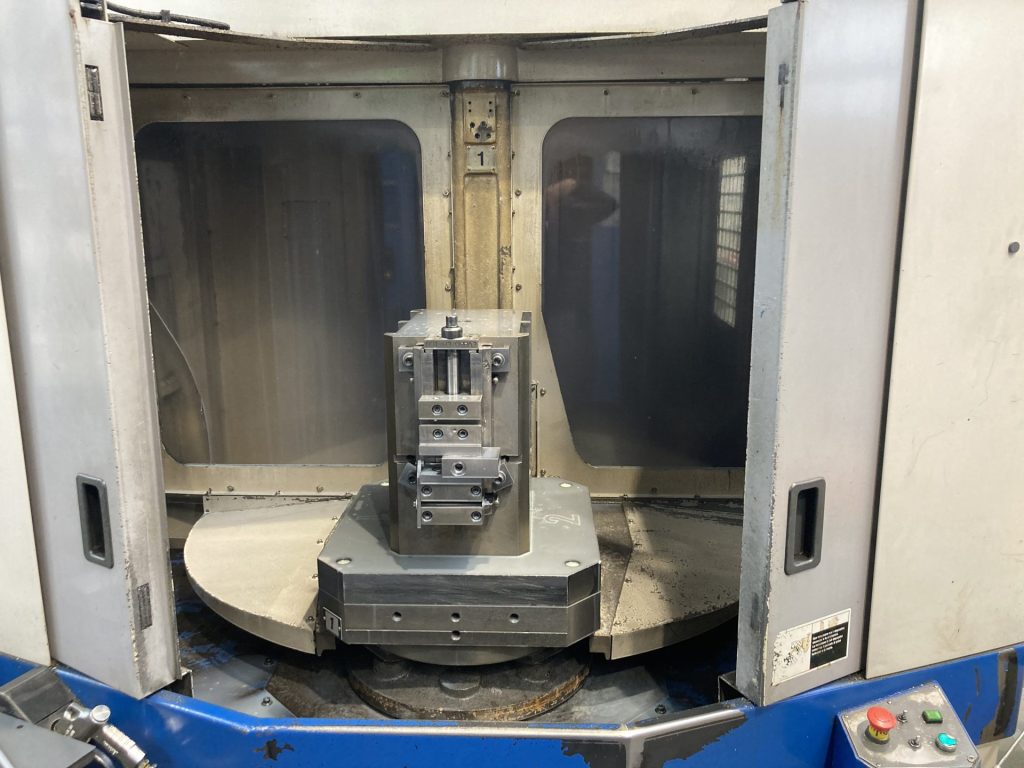

Pallet System

  • Pallet dimensions: 500 × 500 mm

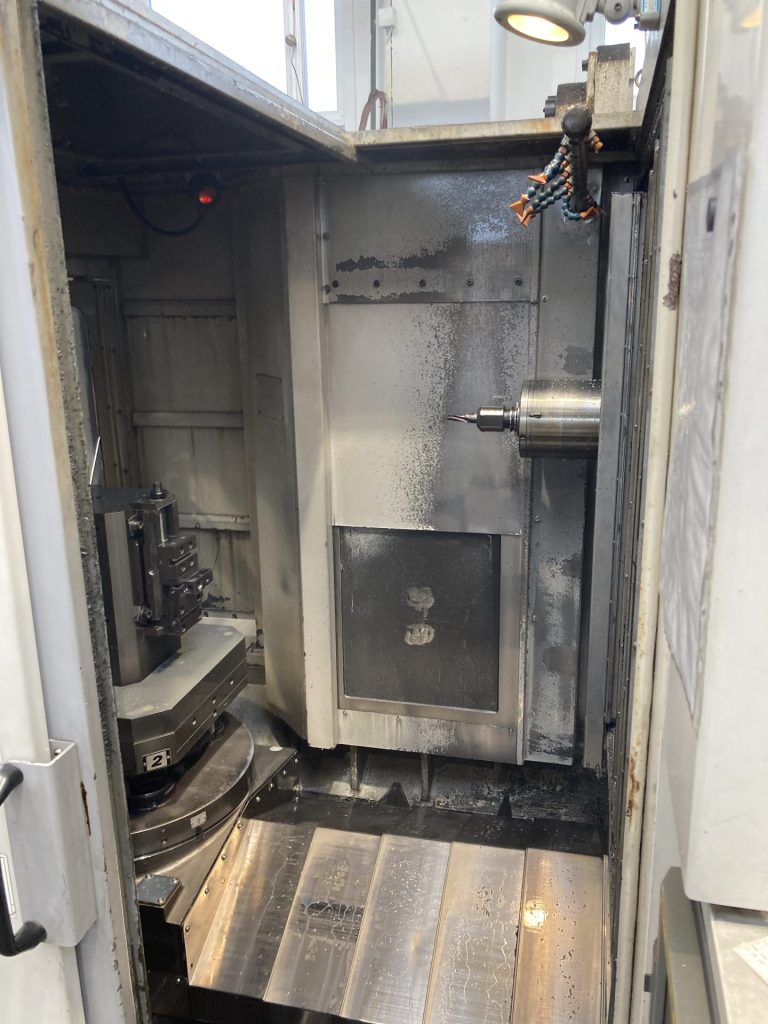

Spindle

  • Type: alfaP22 / 8000
  • Engine power (continuous / 15 min): 11 / 15 / 18.5 kW
  • Spindle speed: 8,000 rpm
  • Max. torque (15'): 29.2 Nm
  • Tool clamping force: 1000 N
  • Taper: ISO 40, 7/24
  • Spindle orientation: built-in sensor
  • Power transmission: timing belt + pulley

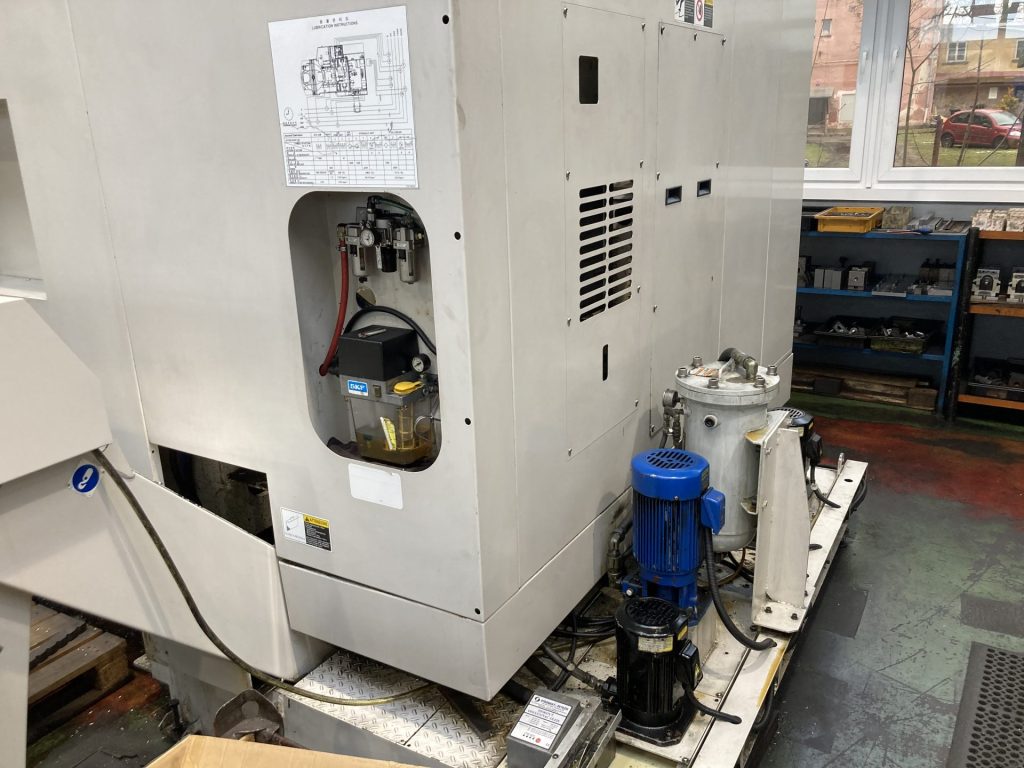

Through-Spindle Cooling (TSC)

  • Pressure: 70 kg/cm²
  • Max. flow rate: 20 l/min
  • Pump power: 3.7 kW

Tool Tray

  • Capacity: 60 tools (chain saw)
    • Note: The catalog incorrectly lists 40 pieces.

Machine Status

The machine has undergone major servicing, is regularly maintained, and is operationally reliable.
It is suitable for precision machining of both production runs and individual parts, offering high dynamics and stability.
