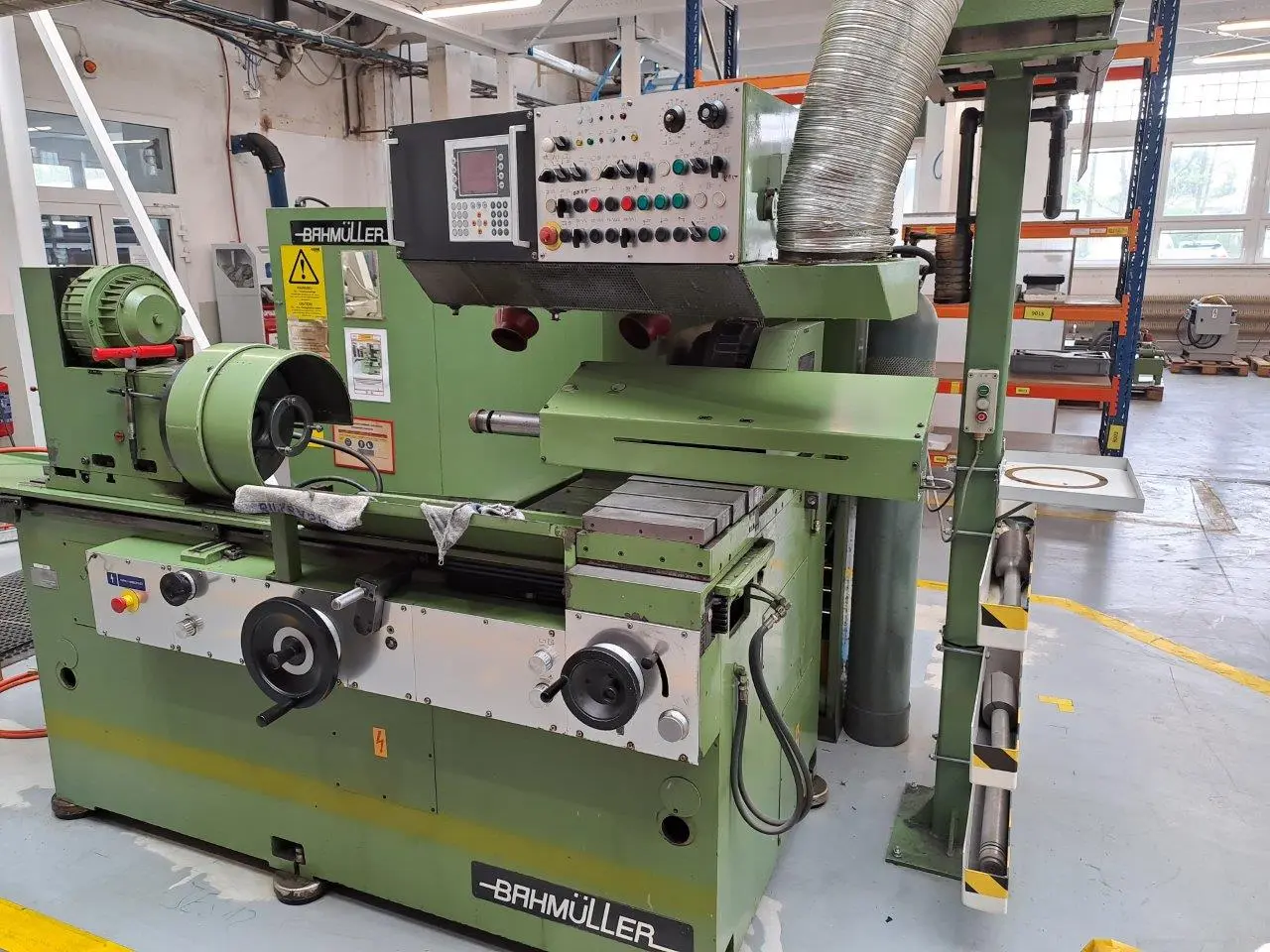

Sales of grinder Bahmaeller Jes12 – Buska on holes

Estate agency MM reality holding, as offers grinding grinder – bruska On holes, ideal for precise grinding of various materials in industrial applications. This grinder is known for its high accuracy, reliability and versatility, making it a great choice for a wide range of grinding. Below you will find detailed technical data of this device.

Technical data:

The largest grindable inner diameter: 250 mm (maximum 300 mm)

The smallest grindable inner diameter: 5/10 mm

The largest grindable outer diameter: 380 mm

The largest outer diameter in waterproof protection: 350 mm

Average oscillation: 390 mm (maximum 490 mm)

Greater grinding depth according to the type of workpiece: 200/400 mm

Table:

• The largest distance between the flange of the workpiece spindle and the inner grinding spindle: 770/1220 mm
• Display work spindle on the table: 450 mm
• The biggest table travel: 550 mm
• The smallest stroke of the table: 2 mm
• The speed of the table shift: 10 m/I
• Table speed, smoothly adjustable: 0-10 m/I
• Table travel on one rotation of the hand wheel (gross setting): 18 mm
• TABLE TAKE ON ONE TURNING OF THE HAND ROK (Fine Adjustment): 4 mm

Workpiece spindle:

• The workpiece spindle speed, smoothly adjustable: 15-1500 OT/min
• The greatest angle of rotation: 30°
• Diameter of the workpiece spindle: 50 mm
• Drive engine, DC current: 1/2 kW
• Maximum workpiece weight including clamping agents: 100 kg

Inner abrasive spindle:

• Fast feed, adjustable: 0-250 mm/min
• ITA: 70 mm

Manufacturer:

Wilhelm Bahmüller Maschinenbau – Precisionswerkzeugen GmbH

Contact

For more information or arrange a tour please contact Contacts-Sedlacek Trade SRO (Sedlacek-t.cz)

Bahmaler JES12 is a great choice for accurate and efficient grinding. Do not hesitate and get this quality industrial grinder today!

The purchase of this grinder is an investment in the quality and performance that every industrial enterprise will appreciate. Take advantage of this unique offer and secure a machine that will move your production processes to a higher level.
