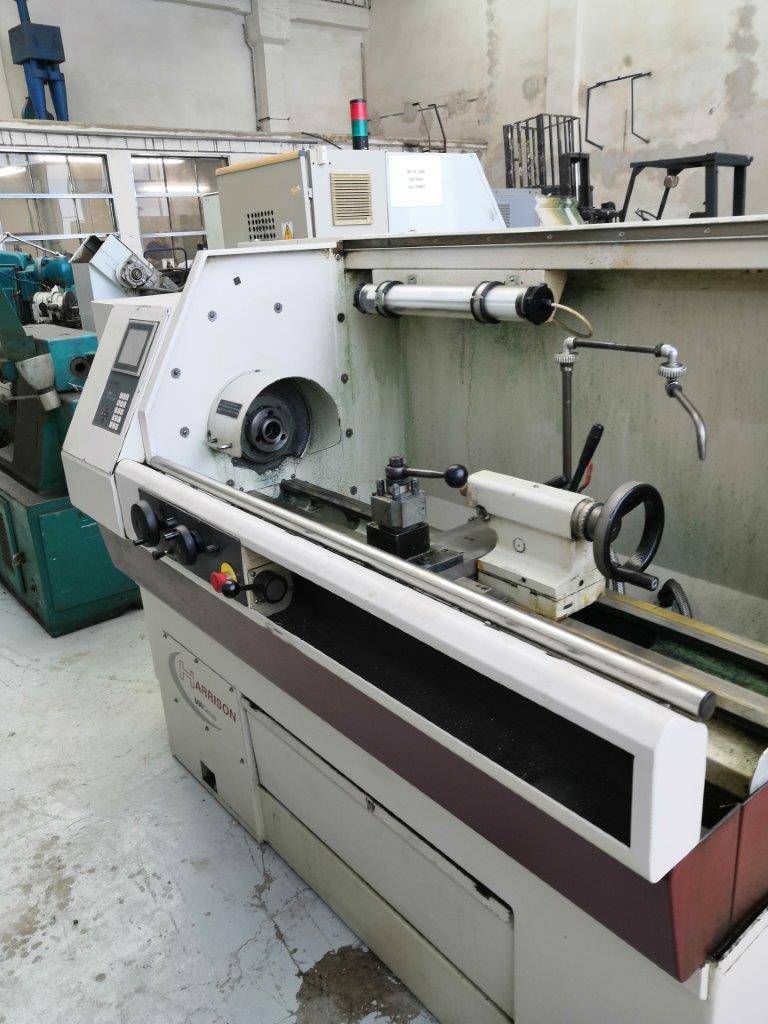

Lathe Harrison Alpha 330T

IMG 20200421 101644

Height of Centres: 167mm
Distance between Centres: 1000mm
Swing over bed: 330mm
Swing over cross slide: 210mm
Spindle Bore: 42mm
Spindle Nose: Camlock D1-4Taper in Nose bush: No.3
MTSpindle speeds: 2 infinitely variable ranges
Speed range: 90 to 2000rpm; 160 to 3500rpm
Main motor: 7.5kwX-Axis ball screw diameter: 16mmX- Axis ball screw diameter: 25mm
Federate – X and Z Axes: 0.03 to 0.6 mm/rev
Rapid traverse speed – X and Z Axes: 4000mm/minLongitudinal threading feed: Max 5750mm/min
Width over bed ways: 206mmWidth over cross slide: 140mm
Cross slide travel: 180mm
Tailstock quill diameter: 42mmTailstock quill travel: 110mmTailstock quill taper: No.3 MTStandard Equipment:Electrically interlocked chuck guard

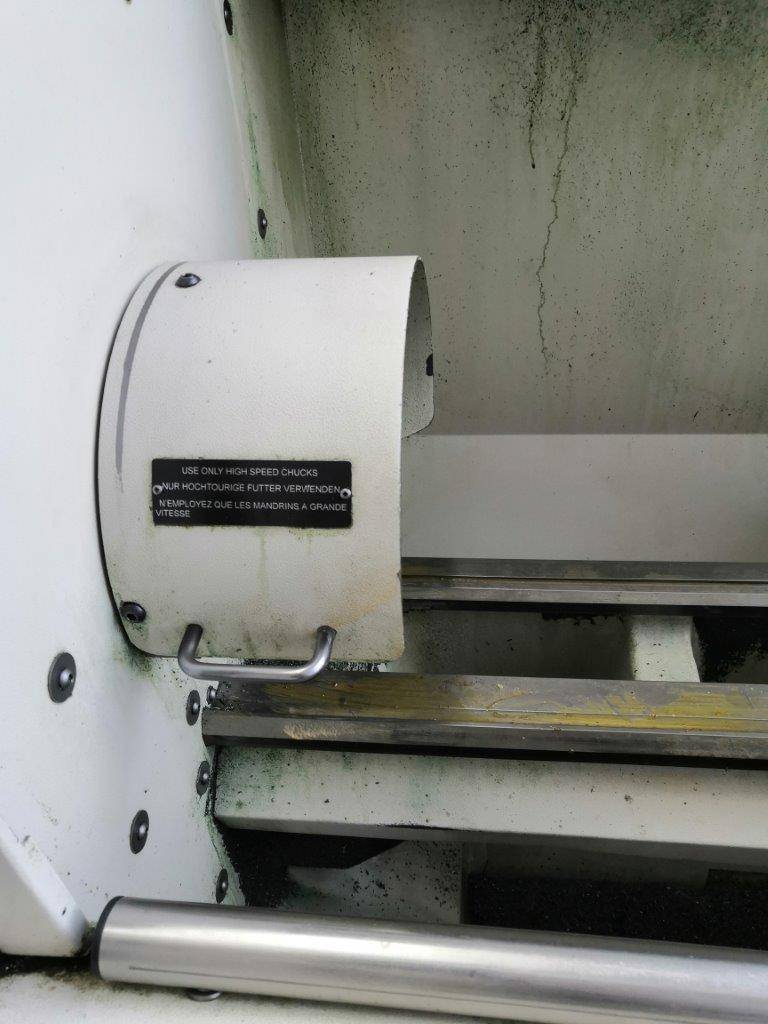

Electrically interlocked lifting work zone guard to CE standards
Standard electric coolant pump, tank, hose and fittings
Machine light
Super precision Pratt Bernard 160mm 3 Jaw chuck
Dickson quick change tool post complete with 10 – off standard and 1 off boring bar holder
Manually operated tailstock
